ASUS ROG Strix X570-I Gaming AM4 Mini-ITX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
$29.99 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG Strix X570-I Gaming is a Mini-ITX motherboard for AM4. It supports DDR4 memory up to 4800 MT/s (OC).
- Amd AM4 Socket: Ready For 2Nd, And 3Rd Gen AMD Ryzen Processors, Support Dual M. 2 Drives, USB 3. 2 Gen2, HDMI 2. 0, Displayport 1. 4 And AMD Store Mi To Maximize Connectivity And Speed.

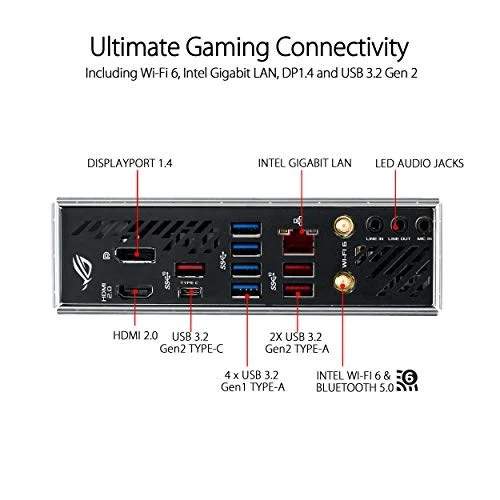

- Next-Gen Gaming Connectivity: Features Pcie 4. 0, HDMI 2. 0, Displayport 1. 4, Dual M. 2, USB 3. 2 Type-A And Type-C Connectors.
- Fastest Gaming Networking: Intel Gigabit Ethernet With Asus Languard, Wi-Fi 6 (802. 11Ax) With MU-MIMO Support, And Gateway Teaming Via Gamefirst V.

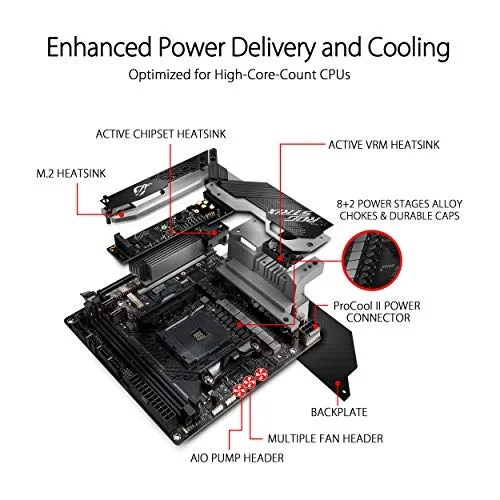

- Optimal Power Solution: 8+2 Power Stages With A Procool II Power Connector, Alloy Chokes And Durable Capacitors To Support Multi-Core Processors.
- Comprehensive Cooling Design: Features An Actively-Cooled VRM, Chipset Combo Heatsink And Heat Pipe To Absorb And Rapidly Dissipate Heat, Meanwhile Paired With AIO Pump Header And Multiple Chassis-Fan Header.

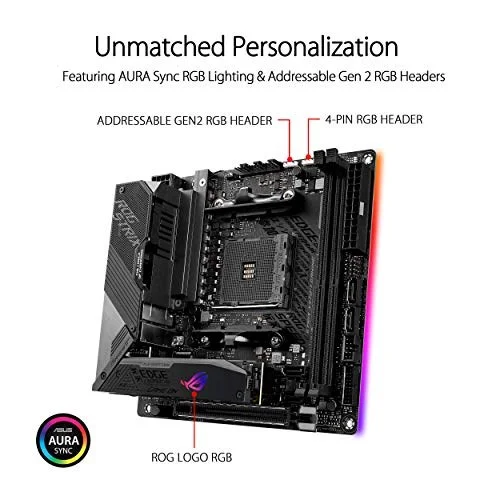

- Unmatched Personalization: ASUS-Exclusive Aura Sync RGB Lighting, Including RGB Headers And Gen. 2 Addressable RGB Headers.
- Industry-Leading ROG Audio: High-Fidelity Audio With Supreme S1220A, DTS Sound Unbound And Sonic Studio III To Draw You Deeper Into The Action.
- 5-Way Optimization: Automated System-Wide Tuning, Providing Overclocking And Cooling Profiles Tailor Made For Your Rig.
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG Strix X570-I Gaming 90MB1140-M0EAY0 90MB1140-M0AAY0 |
| Launch Date | September 2019 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3800 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG Strix X570-I Gaming |
| SKU Code | ROG Strix X570-I Gaming |
| GTIN / EAN | 192876487594 |
Price History (last 12 months)
Plots available price points within the past 12 months.
