ASUS ROG STRIX X870-I GAMING WIFI AM5 Mini-ITX DDR5 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG STRIX X870-I GAMING WIFI is a Mini-ITX motherboard for AM5. It supports DDR5 memory up to 8600 MT/s (OC).
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Ryzen 7000, 8000 and 9000 series desktop processors

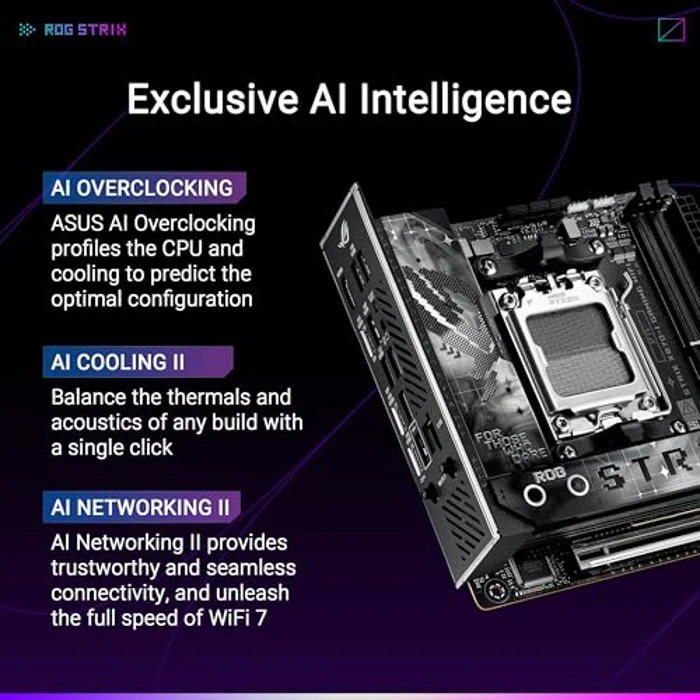

- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and AEMP to simplify setup and improve performance
- ROG Strix Overclocking technologies: Dynamic OC Switcher, Core Flex, Asynchnorous Clock and PBO Enhancement

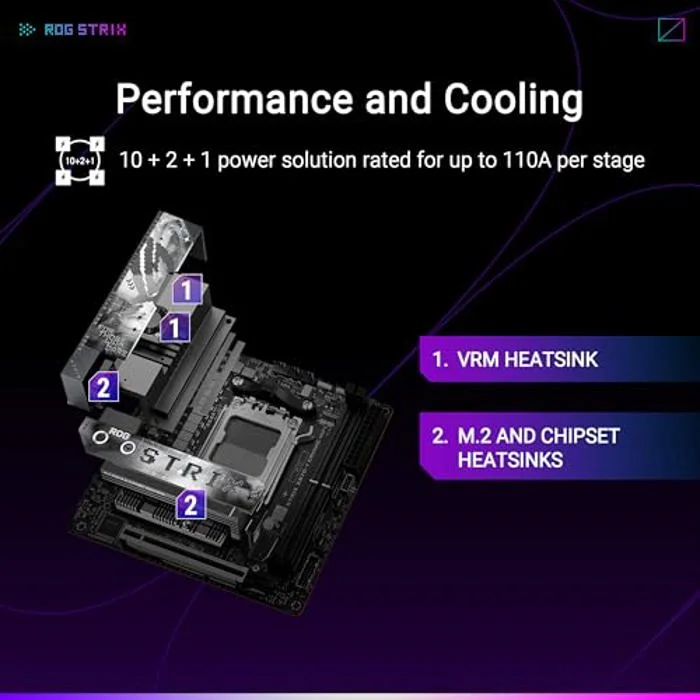

- Robust Power Solution: 10+2+1 power solution rated for 110A per stage with ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Massive heatsinks with integrated I/O cover and high-conductivity thermal pads, with L-shaped backplate
- Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and one PCIe 4.0 M.2 slot, all with substantial cooling solutions
- Abundant Connectivity: Dual USB4 Type-C ports, USB 10Gbps Type-C front-panel connector, seven additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI port
- High-Performance Networking: On-board WiFi 7 (802.11be) with Intel 2.5 Gb Ethernet

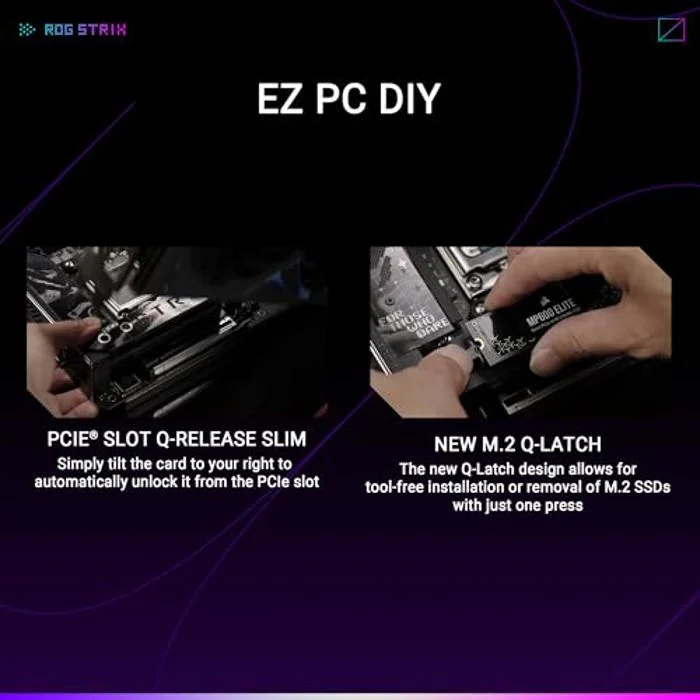

- DIY Friendly Design: Bundled ROG FPS-II Card and ROG Strix Hive II, PCIe Slot Q-Release Slim, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG STRIX X870-I GAMING WIFI 90MB1IW0-M0AAY0 |
| Launch Date | September 2024 |
| CPU Socket | AM5 |
| Chipset Model | Intel X870 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 / DDR5-8400 / DDR5-8600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 2 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 0 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG STRIX X870-I GAMING WIFI |
| SKU Code | ROG STRIX X870-I GAMING WIFI |
| GTIN / EAN | 197105740303 |
