ASUS ROG STRIX Z270i GAMING LGA1151 Mini-ITX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

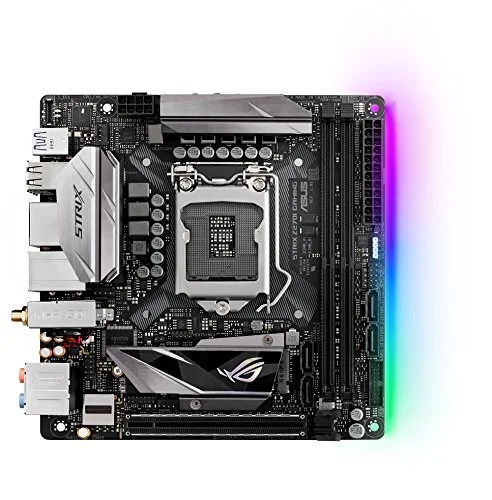

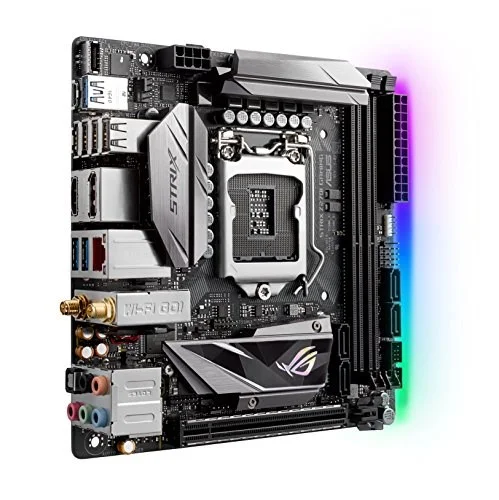

The ASUS ROG STRIX Z270i GAMING is a Mini-ITX motherboard for LGA1151. It supports DDR4 memory up to 4266 MT/s (OC).
- The successor to Pro Gaming motherboards
- LGA1151 socket for 7th Gen and 6th Gen Intel Core desktop processors
- Double-decker PCH and M.2 heatsinks design for optimal heat dissipation and gaming performance
- Aura Sync RGB LEDs and Aura 4-pin RGB header for ultimate customizability
- ROG SupremeFX audio: Renowned audio performance with dual headphone amplifiers, leveled-up Sonic Studio III, and Sonic Radar III
- Best gaming networking: Intel Gigabit Ethernet, 2x2 802.11ac MU-MIMO Wi-Fi, and LANGuard and GameFirst technologies
- 5-Way Optimization: One-click system-wide overclocking
- Next-gen connectivity: Onboard dual M.2 slots for up to 32Gbps of PCIe bandwidth a front-panel USB 3.1 Type-C connector
- Patent-pending ASUS SafeSlot for enhanced PCIe retention and shearing resistance
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | STRIX Z270I GAMING |
| Launch Date | February 2017 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z270 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 0 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | STRIX Z270I GAMING |
| SKU Code | STRIX Z270I GAMING |
| GTIN / EAN | 889349651452 |
