ASUS ROG STRIX Z490-A GAMING LGA1200 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
$29.99 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

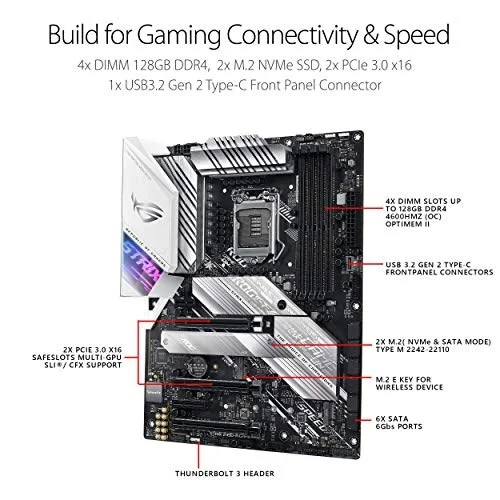

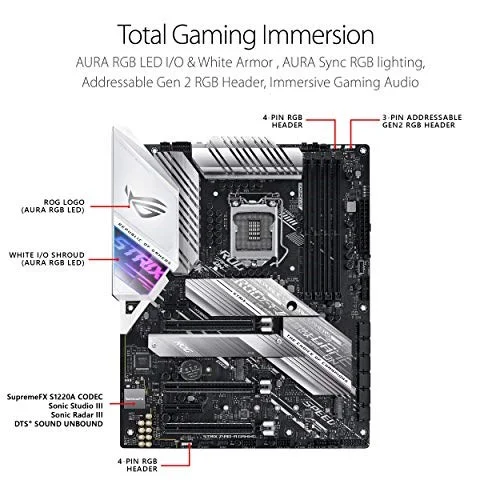

The ASUS ROG STRIX Z490-A GAMING is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4600 MT/s (OC).
- Intel LGA 1200 Socket: Designed To Unleash The Maximum Performance Of 10Th Gen Intel Core Processors

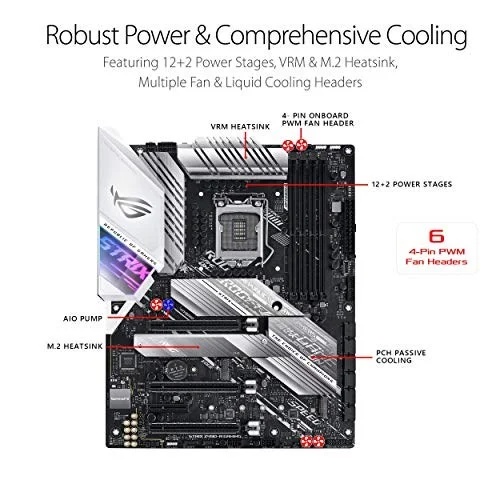

- Robust Power Solution: 12+2 Dr. MOS Power Stages With Procool II Power Connector, High-Quality Alloy Chokes And Durable Capacitors To Provide Reliable Power When Pushing CPU Performance To The Limit
- Optimized Thermal Design: VRM Heatsink, PCH Fanless Heatsink, M. 2 Heatsink, Hybrid Fan Headers And Fan Xpert 4 Utility
- High-Performance Gaming Networking: On-Board Intel 2. 5 Gb Ethernet With ASUS Languard
- Best Gaming Connectivity: Supports HDMI 1. 4 And Displayport 1. 4 Output, And Featuring Dual M. 2, Front Panel USB 3. 2 Gen 2 Type-C Connector
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG STRIX Z490-A GAMING 90MB12Y0-M0EAY0 |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z490 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4500 / DDR4-4600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x4, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG STRIX Z490-A GAMING |
| SKU Code | ROG STRIX Z490-A GAMING |
| GTIN / EAN | 192876676011 |
Price History (last 12 months)
Plots available price points within the past 12 months.
