ASUS ROG STRIX Z590-I GAMING WIFI LGA1200 Mini-ITX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG STRIX Z590-I GAMING WIFI is a Mini-ITX motherboard for LGA1200. It supports DDR4 memory up to 5133 MT/s (OC).
- Intel LGA 1200 Socket: Designed To Unleash The Maximum Performance Of 11Th Gen Intel Core Processors
- AI Motherboard: AI Overclocking, AI Cooling, AI Networking And Two-Way AI Noise Cancellation

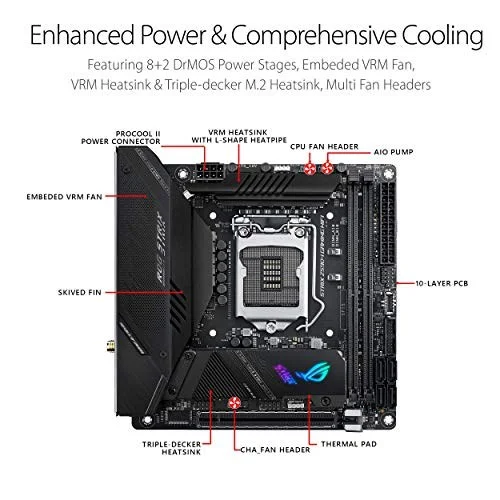

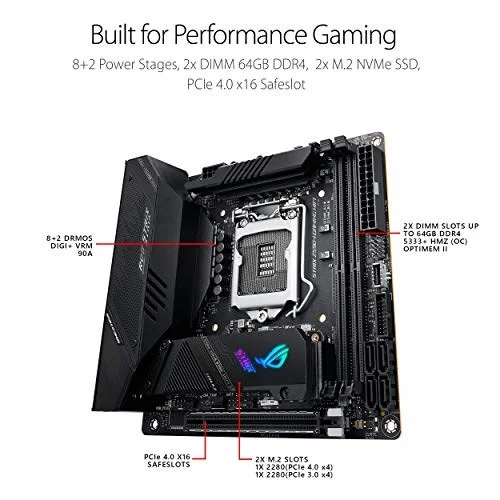

- Robust Power Solution:10 Layer PCB, 8+2 Dr. MOS Power Stages With Procool II Power Connector, High-Quality Alloy Chokes And Durable Capacitors To Provide Reliable Power When Pushing CPU Performance
- Optimized Thermal Design: Active VRM Fan, Triple-Decker Heatsinks, Integratedi/O & MOS Heatsinks, M.2 Backplate, L-Shape Heat-Pipe,PCH Heatsink, Skived Fin

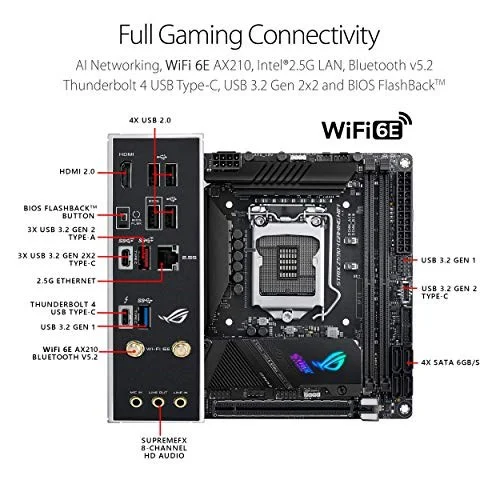

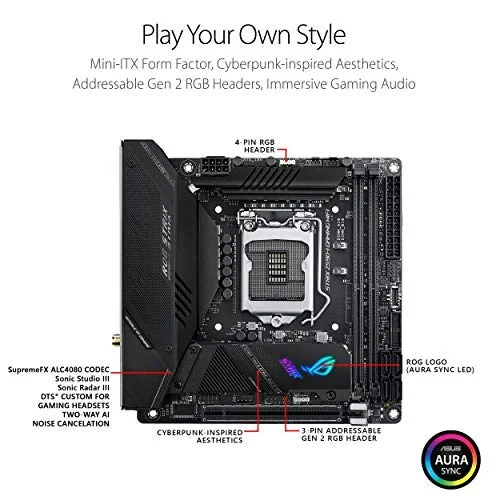

- High-Performance Gaming Networking: On-Board Intel Wifi 6E AX210 (802.11 Ax), Intel 2.5 Gb Ethernet With ASUS Languard. Best Gaming Connectivity: Support Dual M.2, Thunderbolt 4 Onboard, HDMI 2.0 And Displayport 1.4 Output, And Front Panel USB 3.2 Gen 2 Type-C Connector. Industry-Leading Gaming Audio: High Fidelity Audio With The Supremefx ALC 4080 Codec, DTS Sound Unbound And Sonic Studio III Draws You Deeper Into The Game Action. Unmatched Personalization: ASUS-Exclusive Aura Sync RGB Lighting, Including RGB Headers And Gen 2 Addressable RGB Headers. PC DIY Friendly: Pre-Mount I/O Shield, M.2 Q-Latch, BIOS Flashback
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG STRIX Z590-I GAMING WIFI 90MB1680-M0AAY0 |
| Launch Date | February 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z590 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-5000 / DDR4-5133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key (Intel 11th Gen only), 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG STRIX Z590-I GAMING WIFI |
| SKU Code | ROG STRIX Z590-I GAMING WIFI |
| GTIN / EAN | 195553097963 |
