Asus ROG STRIX Z690-E GAMING WIFI LGA1700 ATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus ROG STRIX Z690-E GAMING WIFI is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).

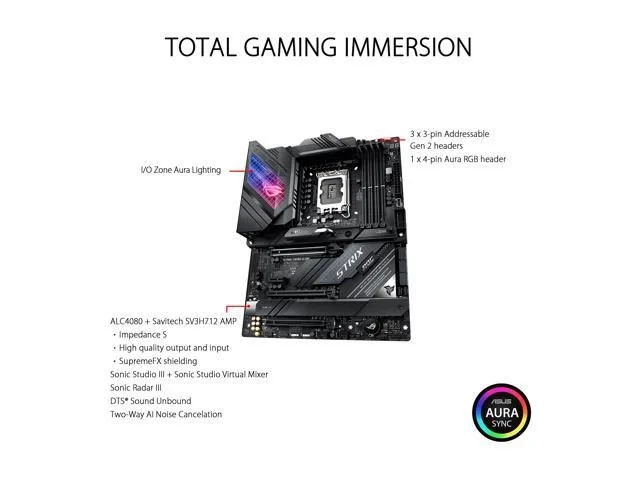

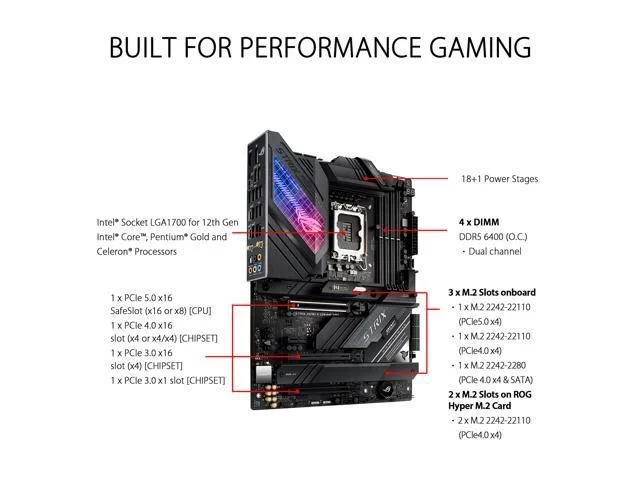

- ASUS ROG Strix Z690-E Gaming WiFi 6E LGA 1700 Intel 12th Gen ATX Gaming Motherboard- PCIe 5.0, DDR5, 18+1 Power Stages, 2.5 Gb LAN, Bluetooth v5.2 Memory Standard: DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration. Number of Memory Slots: 4×288pin (DDR5) Audio Chipset: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 PCI Express 5.0 x16: 1 x PCI Express 5.0 x16 * Actual support may vary by CPU. * When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only. PCI Express 4.0 x16: 1 x PCI Express 4.0 x16 * Supports x4 mode or x4/x4 mode for ROG HYPER M.2 CARD. PCI Express 3.0 x16: 1 x PCI Express 3.0 x16 * Supports x4 mode. Onboard Video Chipset: Supported only by CPU with integrated graphi…
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | ROG STRIX Z690-E GAMING WIFI STRIX Z690-E GAMING WIFI 90MB18J0-M0EAY0 90MB18J0-M0AAY0 90MB18J0-M2AAY0 |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

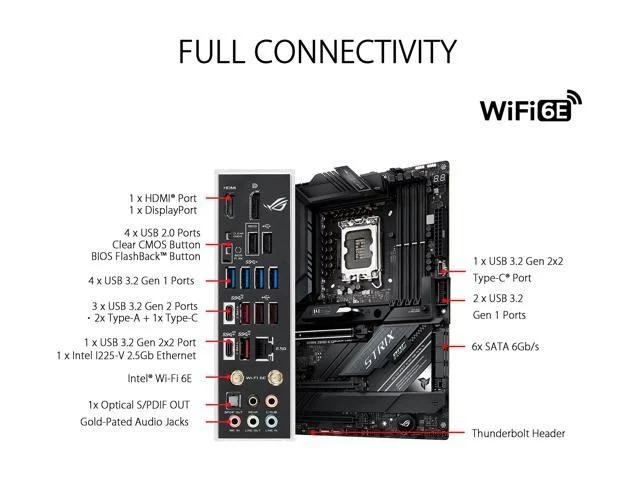

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG STRIX Z690-E GAMING WIFI |
| SKU Code | ROG STRIX Z690-E GAMING WIFI |
| GTIN / EAN | 195553494632 |
