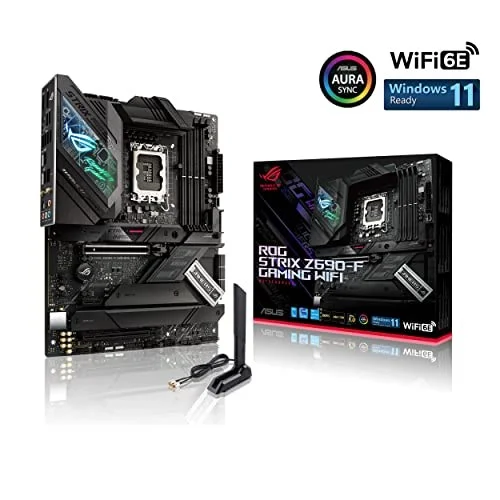

ASUS ROG Strix Z690-F Gaming WiFi LGA1700 ATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG Strix Z690-F Gaming WiFi is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).

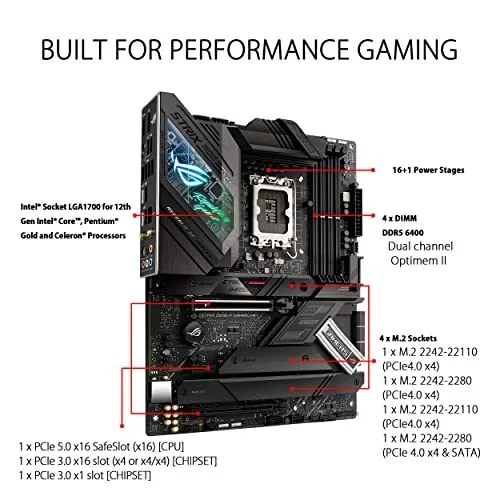

- Intel LGA 1700 socket: Ready for 12th Gen Intel Core processors, support PCIe 5.0,DDR5 and out of box Windows 11 ready
- AI Motherboard : AI Overclocking, AI cooling, AI networking(GameFirst VI) and AI noise cancellation
- Robust Power Solution: 16+1 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors

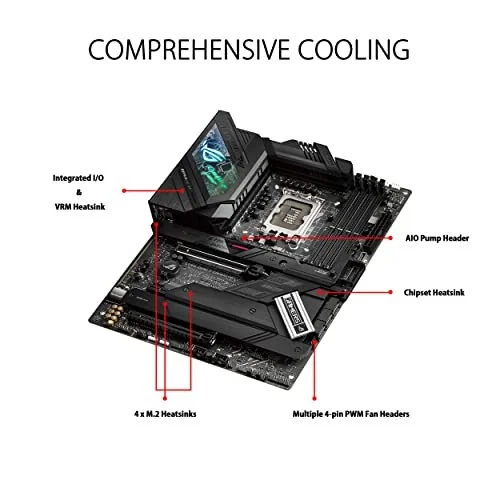

- Optimized Thermal Design: VRM heatsink, PCH fanless heatsink, double-sided M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- High-performance Gaming Networking: On-board WiFi 6E and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI 2.0 and DisplayPort 1.4 output, and featuring quad M.2 and USB 3.2 Gen 2x2 Type-C & Type-A and Front panel USB 3.2 Gen 2x2 Type-C connectors
- PC DIY Friendly: SafeDIMM, PCIe 5.0 Safeslot, Q-LED, M.2 Q-Latch, CPU socket lever protector, Pre-mount I/O shield, BIOS FlashBack, Clr CMOS button, Q-Code and FlexKey (Reset, Aura on/off, Direct key)

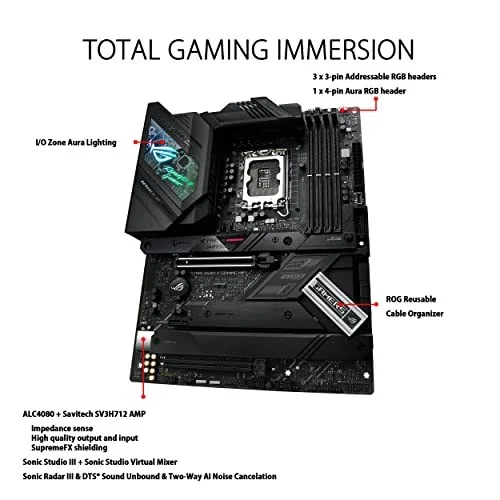

- Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III
- New ROG Strix Aesthetics: New ID design, Illuminated Acrylic Display, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG STRIX Z690-F GAMING WIFI STRIX Z690-F GAMING WIFI 90MB18M0-M0EAY0 90MB18M0-M0AAY0 |
| Launch Date | November 2021 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG STRIX Z690-F GAMING WIFI |
| SKU Code | ROG STRIX Z690-F GAMING WIFI |
| GTIN / EAN | 195553441766 |
