Asus ROG STRIX Z690-I GAMING WIFI LGA1700 Mini-ITX DDR5 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

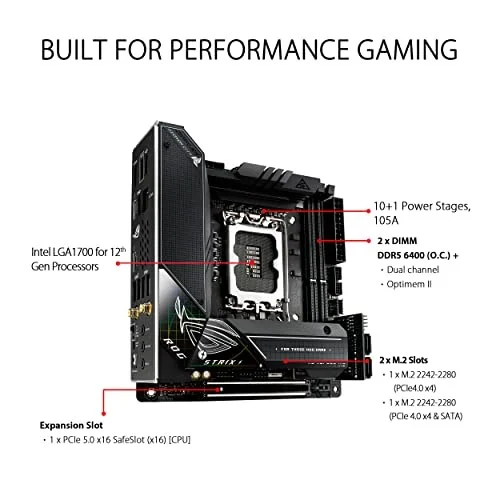

The Asus ROG STRIX Z690-I GAMING WIFI is a Mini-ITX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).
- ASUS ROG Strix Z690-I Gaming WiFi 6E LGA 1700 (Intel 12th Gen) mini-ITX Gaming Motherboard- PCIe 5.0, DDR5, 10 Layer PCB, 10+1 Power Stages, Thunderbolt 4 Onboard, Intel 2.5 Gb LAN Memory Standard: DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(OC)* * Actual Memory frequency support depends on the CPU types and DRAM modules. Number of Memory Slots: 2×288pin (DDR5) Audio Chipset: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 PCI Express 5.0 x16: 1 x PCI Express 5.0 x16 * Actual support may vary by CPU. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10/100/1000/2500Mbps CPU Type: Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | ROG STRIX Z690-I GAMING WIFI STRIX Z690-I GAMING WIFI 90MB1910-M0EAY0 90MB1910-MVAAY0 90MB1910-M0AAY0 90MB1910-M2AAY0 |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG STRIX Z690-I GAMING WIFI |
| SKU Code | ROG STRIX Z690-I GAMING WIFI |
| GTIN / EAN | 195553460965 |
