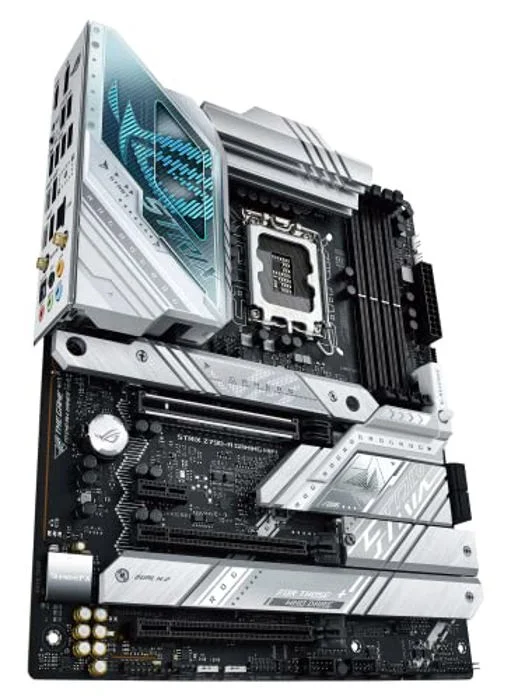

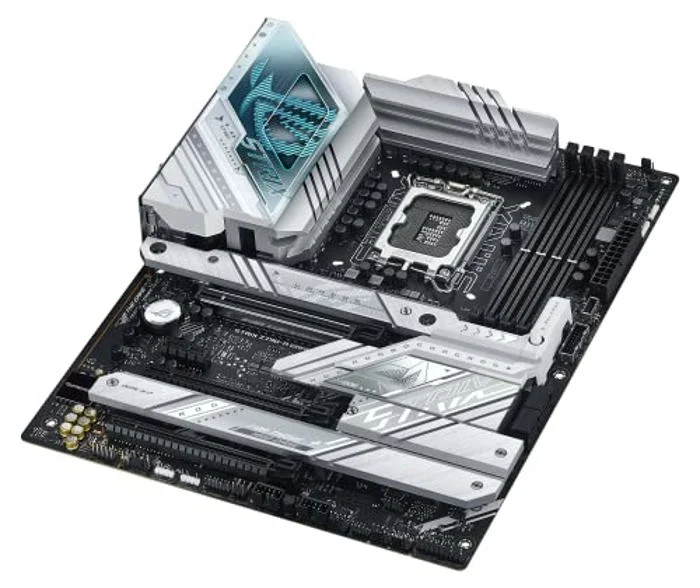

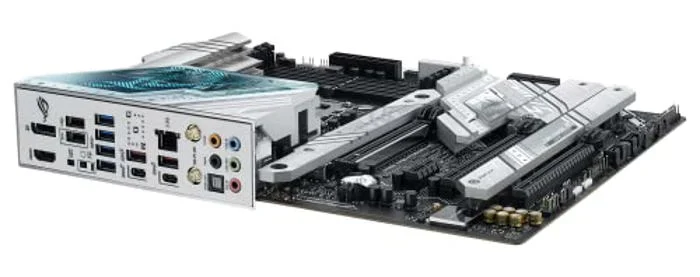

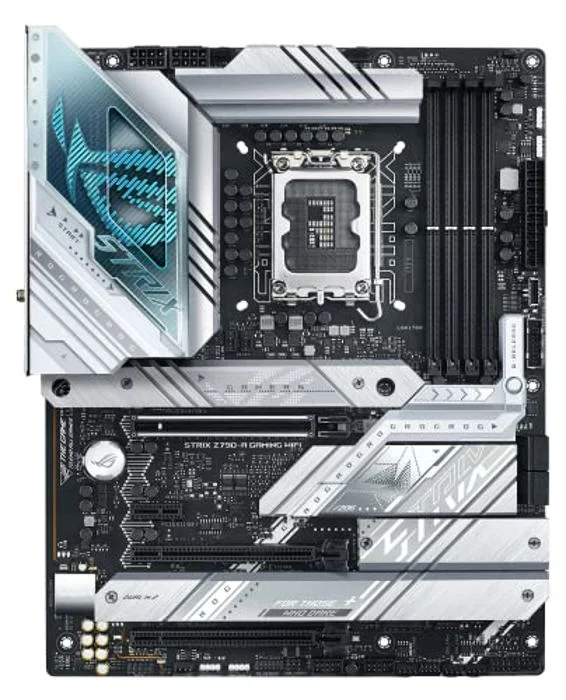

ASUS ROG Strix Z790-A Gaming WiFi LGA1700 ATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG Strix Z790-A Gaming WiFi is a ATX motherboard for LGA1700. It supports DDR5 memory up to 7800 MT/s (OC).
- Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Robust Power Solution: 16 + 1 power solution rated for 70A per stage with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
- Optimized VRM Thermals: Massive heatsinks with integrated I/O cover and high-conductivity thermal pads.
- Ample M.2 Support: One PCIe 4.0 M.2 slot with a heatsink and backplate, and three PCIe 4.0 M.2 slots with heatsinks
- Abundant Connectivity: USB 3.2 Gen 2x2 Type-C rear I/O port and additional front-panel connector with PD 3.0 up to 30W, USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, HDMI 2.1, and DisplayPort 1.4
- High-Performance Networking: On-board WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, and Two-Way AI Noise Cancelation simplifies setup and improves performance
- DIY-friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, Q-LED, BIOS FlashBack button, BIOS FlashBack LED, and Clear CMOS button
- Renowned Software: Bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG STRIX Z790-A GAMING WIFI 90MB1E00-M0AAY0 |
| Launch Date | January 2023 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z790 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG STRIX Z790-A GAMING WIFI |
| SKU Code | ROG STRIX Z790-A GAMING WIFI |
| GTIN / EAN | 197105028470 |
