ASUS ROG Strix Z790-E Gaming WiFi II LGA1700 ATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG Strix Z790-E Gaming WiFi II is a ATX motherboard for LGA1700. It supports DDR5 memory up to 8000 MT/s (OC).
- Intel LGA 1700 Socket: Ready for Intel Socket LGA1700 for Intel Core 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors

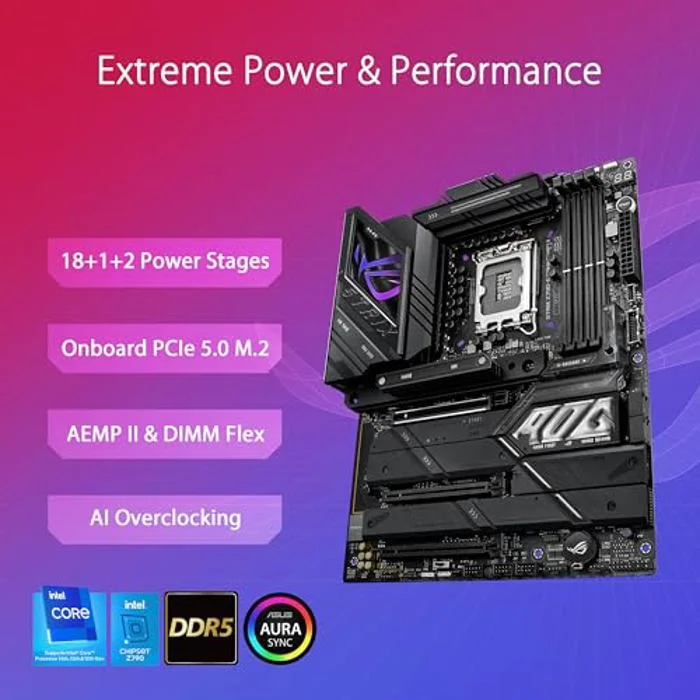

- Robust Power Solution: 18(110A)+1(110A)+2 power solution with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors

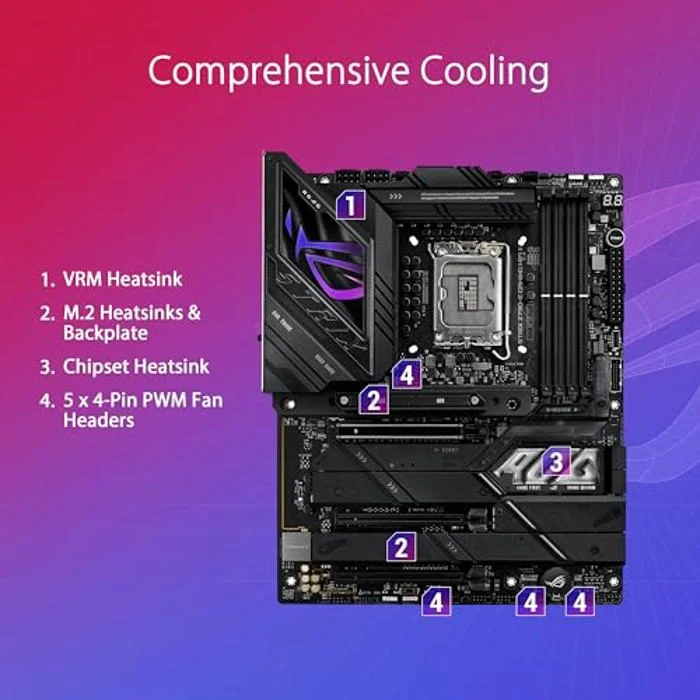

- Optimized VRM Thermals: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and are connected with an L-shaped heatpipe
- Next-Gen M.2 Support: PCIe 5.0 M.2 slot with Combo-Sink U-shaped Direct Contact heatsink and backplate, and four PCIe 4.0 M.2 slots with heatsinks
- Abundant Connectivity: USB 20Gbps rear I/O port and front-panel connector with PD 3.0 up to 30W, eleven additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI 2.1, and DisplayPort 1.4
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG STRIX Z790-E GAMING WIFI II 90MB1FC0-M0EAY0 90MB1FC0-M0AAY0 90MB1FC0-MVAAY0 |
| Launch Date | October 2023 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z790 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-8000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2280 - M Key, 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG STRIX Z790-E GAMING WIFI II |
| SKU Code | ROG STRIX Z790-E GAMING WIFI II |
| GTIN / EAN | 197105357341 |
