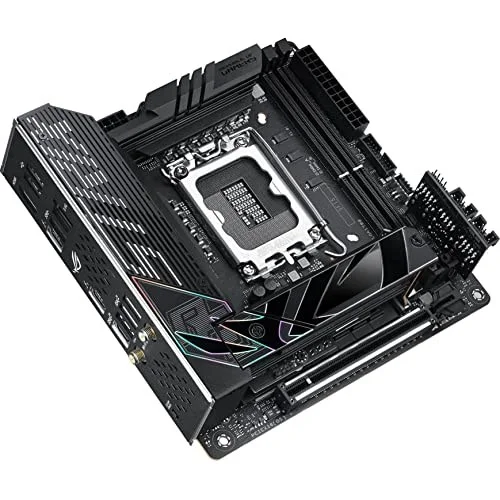

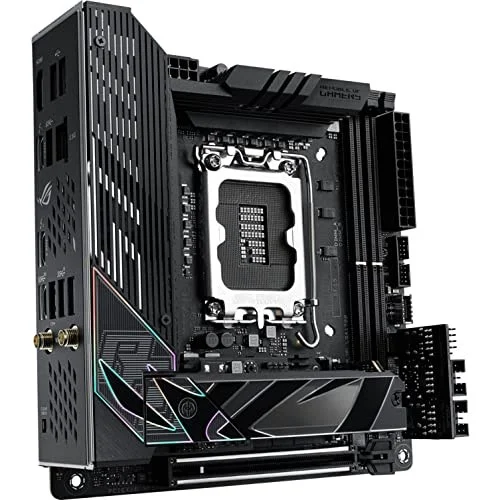

Asus ROG STRIX Z790-I GAMING WIFI LGA1700 Mini-ITX DDR5 96 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus ROG STRIX Z790-I GAMING WIFI is a Mini-ITX motherboard for LGA1700. It supports DDR5 memory up to 7200 MT/s (OC).
- ASUS ROG Strix Z790-I Gaming WiFi 6E LGA 1700 (Intel13th&12th Gen) mini-ITX gaming motherboard (PCIe 5.0,DDR5,10+1 power stages,Thunderbolt 4,2.5 Gb LAN,USB 3.2 Gen 2x2 front panel Type-C,2x M.2/NVMe SSD) Memory Standard: DDR5 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 * * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration. Number of Memory Slots: 2x288pin (DDR5) Audio Chipset: Realtek ALC4050 PCI Express 5.0 x16: Intel 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode). Max LAN Speed: 1 x Intel 2.5Gb Ethernet ASUS LANGuard // TUF LANGuard
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | ROG STRIX Z790-I GAMING WIFI 90MB1CM0-M0AAY0 |
| Launch Date | October 2022 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z790 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 96 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 2 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

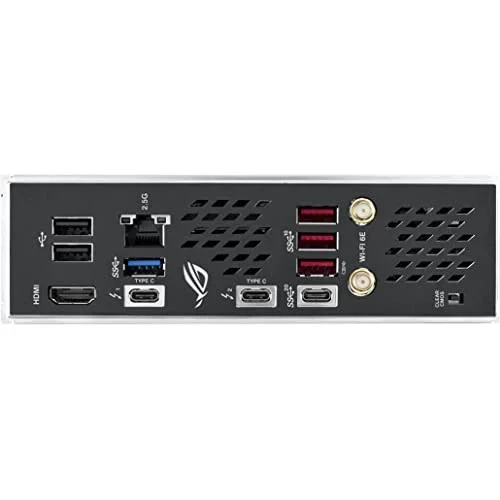

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 0 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG STRIX Z790-I GAMING WIFI |
| SKU Code | ROG STRIX Z790-I GAMING WIFI |
| GTIN / EAN | 195553947497 |
Price History (last 12 months)
Plots available price points within the past 12 months.
