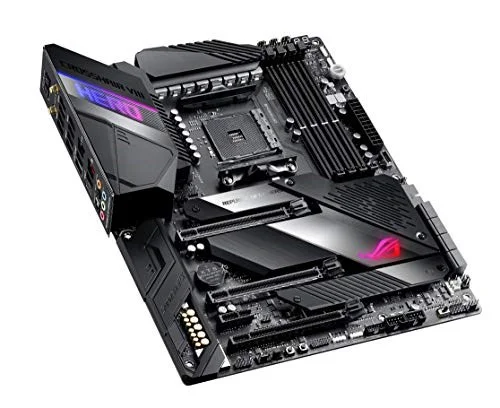

Asus ROG X570 Crosshair VIII Hero (Wi-Fi) AM4 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus ROG X570 Crosshair VIII Hero (Wi-Fi) is a ATX motherboard for AM4. It supports DDR4 memory up to 4600 MT/s (OC).
- AMD AM4 Socket: Ready For 2Nd, And 3Rd Gen AMD Ryzen Processors And Up To Two M. 2 Drives, USB 3. 2 Gen2, And AMD Storemi To Maximize Connectivity And Speed.
- Comprehensive Thermal Design: Active PCH Heatsink, M. 2 Aluminum Heatsink And ROG Cooling Zone.
- High-Performance Networking: On-Board Wi-Fi 6 (802. 11Ax) With MU-MIMO Support, 2. 5 Gaps Ethernet And Gigabit Ethernet, Both With Asus Languard Protection, And Support For Gamefirst V Software.
- 5-Way Optimization: Automated System-Wide Tuning, Providing Overclocking And Cooling Profiles That Are Tailor Made For Your Rig.
- DIY Friendly Design: Pre-Mounted I/O Shield, Asus Safeslot, BIOS Flashback And Premium Components For Maximum Endurance.
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG Crosshair VIII Hero (WI-FI) 90MB10T0-MVAAY0 90MB10T0-M0AAY0 |
| Launch Date | July 2019 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4533 / DDR4-4600 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

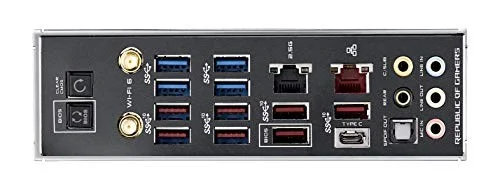

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG Crosshair VIII Hero (WI-FI) |
| SKU Code | ROG Crosshair VIII Hero (WI-FI) |
| GTIN / EAN | 192876378502 |
