ASUS ROG ZENITH EXTREME sTR4 EATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

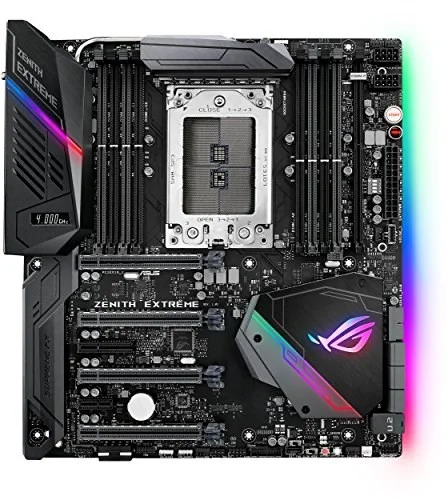

The ASUS ROG ZENITH EXTREME is a EATX motherboard for sTR4. It supports DDR4 memory up to 3600 MT/s (OC).
- Powered by AMD Ryzen Thread ripper TR4 processors to maximize connectivity and speed with support for up to 128GB of DDR4 memory,(3) NV Me M.2 drives, front side U.2 and front panel USB 3.1 Gen2
- 5-Way Optimization featuring Auto-Tuning and Fan pert 4 provides automatic overclocking profiles for maximum OC performance while AIO and water-cooling headers deliver dynamic system cooling
- Built for High Performance Networking featuring onboard Gigabit LAN, Wiig 802.11AD Wife for future wireless VR, and includes the ROG Are ion expansion card for connections up to 10Gbps
- Four patent-pending Safe Slots feature an injection molding process that integrates metal framing for a stronger, firmly anchored Pie slot built for heavyweight GPUs
- Unmatched Personalization with Live Dash OLED and ASUS exclusive AURA Sync RGB lighting throughout the Zenith Extreme, including additional RGB headers (+1 addressable)
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | ROG ZENITH EXTREME 90MB0UV0-M0EAY0 ZENITH EXTREME |
| Launch Date | August 2017 |
| CPU Socket | sTR4 |
| Chipset Model | Intel X399 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3200 / DDR4-3600 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 4 × PCIe x16, 1 × PCIe x4, 1 × PCIe x1 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |

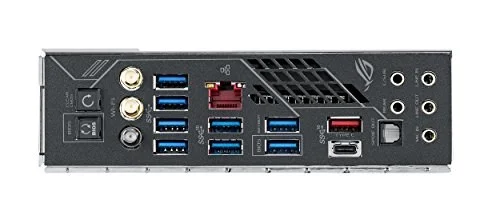

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG ZENITH EXTREME |
| SKU Code | ROG ZENITH EXTREME |
| GTIN / EAN | 718929127783 |
