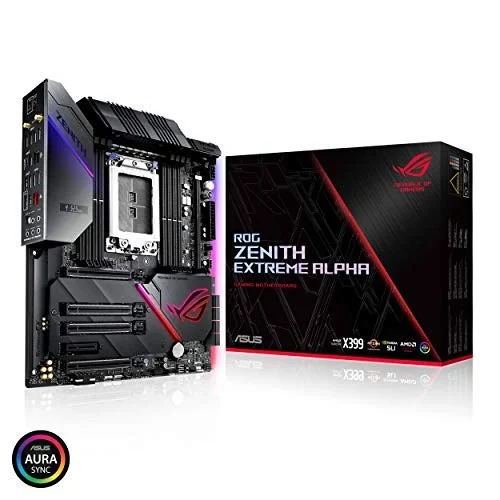

ASUS ROG Zenith Extreme Alpha sTR4 EATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG Zenith Extreme Alpha is a EATX motherboard for sTR4. It supports DDR4 memory up to 3600 MT/s (OC).
- Powered by AMD Ryzen Threadripper 2 (TR4) processors to maximize connectivity and speed with support for up to 128GB of DDR4 memory, three NVMe M.2 drives and front panel USB 3.1 Gen2
- 5-Way Optimization featuring Auto-Tuning and FanXpert 4 provides automatic overclocking profiles for maximum OC performance
-
- Built for high performance networking featuring onboard Aquantia 10G LAN, Intel Gigabit LAN and ASUS LANGuard and GameFirst V technologies
- Rog DIMM.2 allows for expansion of 2 m.2 SSDs and has two heatsinks TO prevent throttling; 10K Black Metallic Capacitors
- Full customization with a 1.3" livedash OLED and ASUS Aura Sync RGB lighting via two addressable headers and ONE RGB header
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG ZENITH EXTREME ALPHA |
| Launch Date | January 2019 |
| CPU Socket | sTR4 |
| Chipset Model | Intel X399 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 4 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG ZENITH EXTREME ALPHA |
| SKU Code | ROG ZENITH EXTREME ALPHA |
| GTIN / EAN | 192876233160 |
