ASUS ROG Zenith II Extreme sTRX4 EATX DDR4 256 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG Zenith II Extreme is a EATX motherboard for sTRX4. It supports DDR4 memory up to 4600 MT/s (OC).
- Ready For AMD 3Rd Gen Ryzen Threadripper Processors: Maximize Connectivity And Speed With Up To Five M.2 Drives, USB3.2 Gen2x2 And AMD Storemi

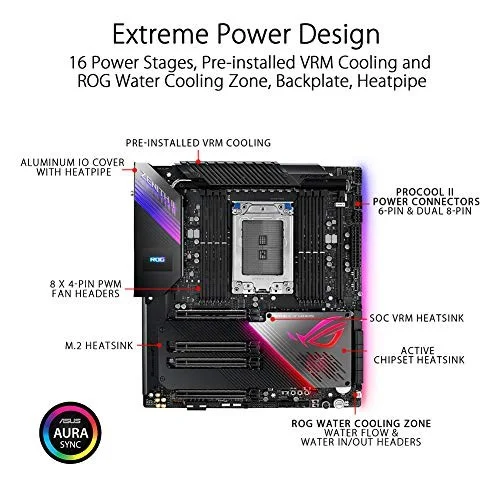

- Robust Power Delivery: Optimized Power Solution With 16 Infineon TDA21472 Power Stages, Procool II Power Connectors, Microfine Alloy Chokes And 10K Capacitors
- Comprehensive Thermal Design: Active-Cooling VRM Heatsink, Pcie-Zone M.2 Aluminum Heatsink, Backplate, Fan Extension Card II And Water-Cooling Zone

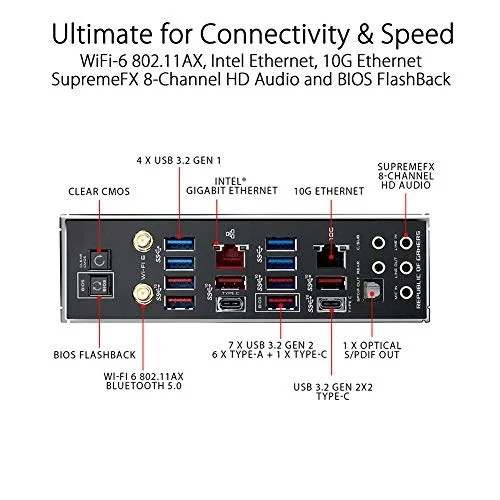

- High-Performance Networking: Onboard Aquantia 10 Gbps Ethernet, Wi-Fi 6 (802.11Ax) With MU-MIMO Support, And Gamefirst V Technology
- Unmatched Personalization: Color OLED Display And ASUS-Exclusive Aura Sync RGB Lighting, Including Two Additional RGB Headers And Two Addressable Headers
- Industry-Leading ROG Audio: Supremefx S1220 And ESS SABRE9018Q2C For Enthusiast-Grade Audio Performance, Featuring Japanese Capacitors
- DIY-Friendly Design: Pre-Mounted I/O Shield, ASUS Safeslot, BIOS Flashback And Flexkey
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | Zenith II Extreme ROG Zenith II Extreme 90MB14K0-M0EAY0 |
| Launch Date | November 2019 |
| CPU Socket | sTRX4 |
| Chipset Model | TRX40 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 4 × PCIe x16 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 2 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Zenith II Extreme |
| SKU Code | Zenith II Extreme |
| GTIN / EAN | 192876456477 |
