ASUS Sabertooth Z87 LGA1150 ATX DDR3 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

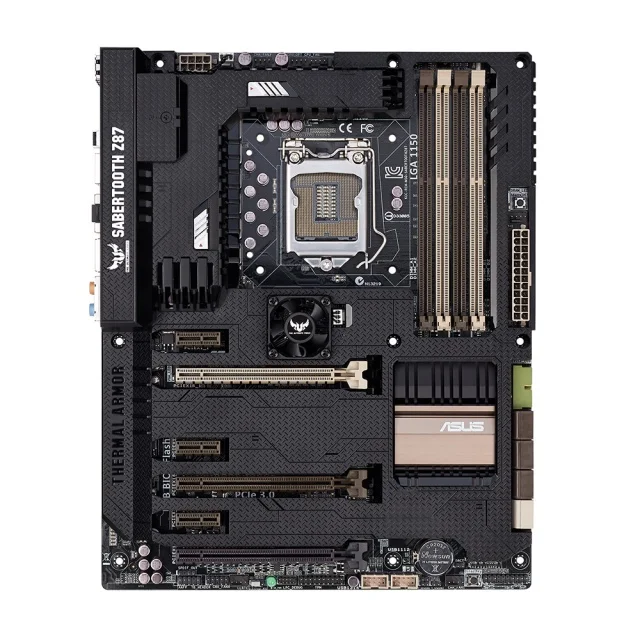

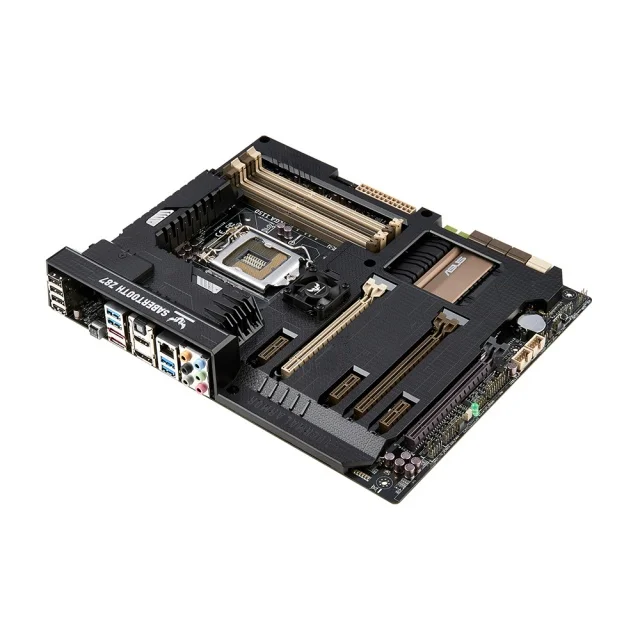

The ASUS Sabertooth Z87 is a ATX motherboard for LGA1150. It supports DDR3 memory up to 1866 MT/s (OC).
- LGA1150 socket for 4th Generation IntelCore i7/ i5/ i3/ Pentium / Celeron Processors
- Intel Z87 Express Chipset
- TUF Fortifier - Bolsters boards against bending damage
- Thermal Armor with Flow Valve - Total airflow-boosting heat dissipation
- Thermal Radar 2 - Complete system cooling, customized fan tuning
- Dust Defenders - Repel the dust, expand the lifespan
- TUF Components [10K Ti-Cap, Alloy Choke & MOSFET; certified by military-standard] – Certified for tough duty
- Intel LAN controller
- Very good onboard audio
- Overclock capabilities
- Thermal armor and thermal management system work great
- Thermal Armour may obstruct some larger CPU heatsinks
- 35mm motherboard fans can get noisy in AUTO mode
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | SABERTOOTH Z87 90MB0DR0-M0EAY0 |
| Launch Date | October 2016 |
| CPU Socket | LGA1150 |
| Chipset Model | Intel Z87 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1333 / DDR4-1600 / DDR4-1866 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

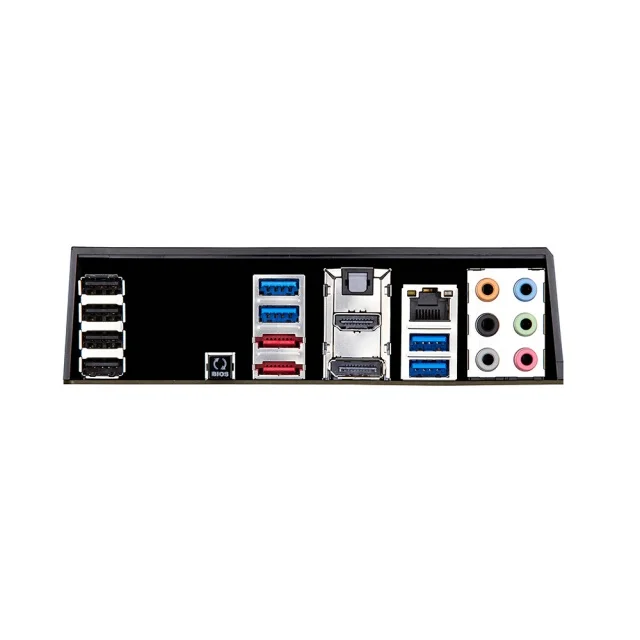

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | SABERTOOTH Z87 |
| SKU Code | SABERTOOTH Z87 |
| GTIN / EAN | 886227487509 |
