ASUS Strix TRX40-E Gaming sTRX4 ATX DDR4 256 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS Strix TRX40-E Gaming is a ATX motherboard for sTRX4. It supports DDR4 memory up to 4666 MT/s (OC).
- Ready For The Latest 3Rd Gen AMD Ryzen Threadripper Series Processors To Maximize Connectivity And Speed With Up To Three M.2 Drives, USB 3.2 Gen 2.

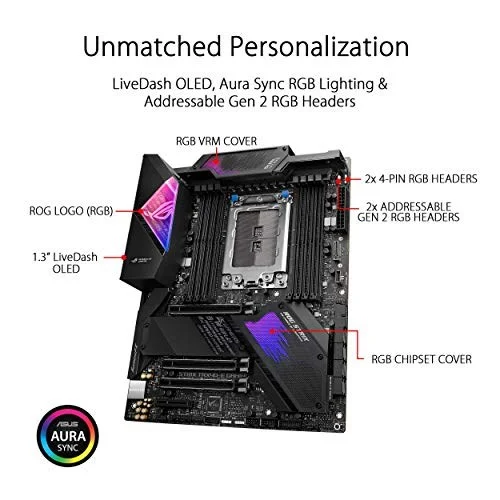

- Unmatched Personalization: OLED And Aura Sync RGB Lighting, Including RGB Headers And Addressable Gen 2 RGB Headers
- Optimal Power Solution: 16 Power Stages With Procool II Power Connector, High-Quality Chokes And Durable Capacitors To Support Multi-Core Processors

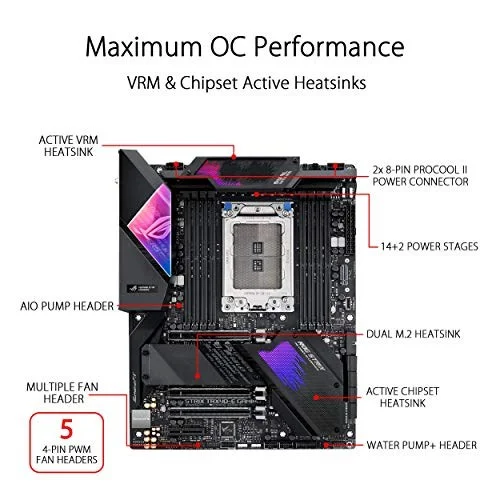

- Comprehensive Cooling: Active Cooling VRM And Chipset Heatsink, Stacked-Fin Heatsink, With On-Board Dual M.2 Heatsinks And A Water Pump+ Header

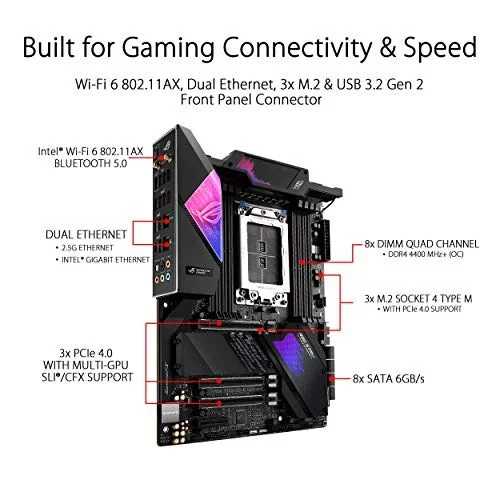

- Gaming Connectivity: Three M.2, USB 3.2 Gen 2 Type-C Port And Type-C Front Panel Connector

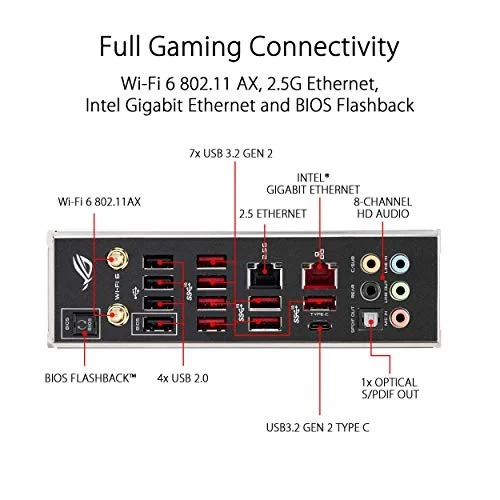

- Gaming Networking: 2.5Gbps LAN And Intel Gigabit Ethernet With Asus Languard, Wi-Fi 6 (802.11Ax) With MU-MIMO, And Gateway Teaming Via Gamefirst V
- Gaming Audio: High Fidelity Audio With Supremefx S1220, DTS Sound Unbound And Sonic Studio III To Draw You Deeper Into The Action
- Easy DIY: Rog-Patented Pre-Mounted I/O Shield, Flexkey, Asus Safe Slot, Asus Node Connector And BIOS Flashback For A Friendlier Building Experience
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | Strix TRX40-E Gaming ROG Strix TRX40-E Gaming TRX40-E Gaming |
| Launch Date | November 2019 |
| CPU Socket | sTRX4 |
| Chipset Model | TRX40 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3733 / DDR4-3800 / DDR4-4133 / DDR4-4266 / DDR4-4333 / DDR4-4400 / DDR4-4600 / DDR4-4666 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Strix TRX40-E Gaming |
| SKU Code | Strix TRX40-E Gaming |
| GTIN / EAN | 192876537107 |
