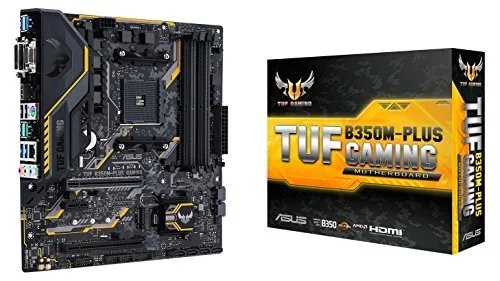

Asus TUF B350M-PLUS GAMING AM4 Micro-ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus TUF B350M-PLUS GAMING is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).
- Powered by AMD Ryzen AM4 and 7th generation Athlon processors to maximize connectivity and speed with NVMe M.2, USB 3.1 Gen2, Gigabit LAN, and up to 64GB of DDR4

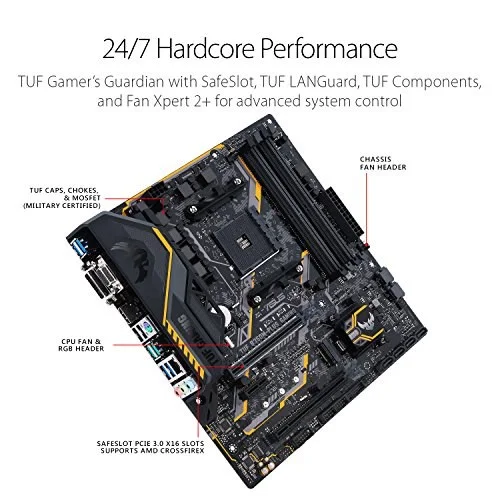

- Military-Grade TUF Components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
- Gamer’s Guardian with Safe Slot and FanXpert 2+ provides hardware-level safeguards for maximum performance with dynamic system cooling
- AURA Sync RGB Lighting via 4-pin header provides a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of AURA Sync enabled products
- Ultimate Protection 5-Year Warranty for guaranteed reliability. Native M.2: Built-in interface for latest SSDs for lightning-fast storage speeds of up to 32Gbps
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | TUF B350M-PLUS GAMING |
| Launch Date | February 2018 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B350 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

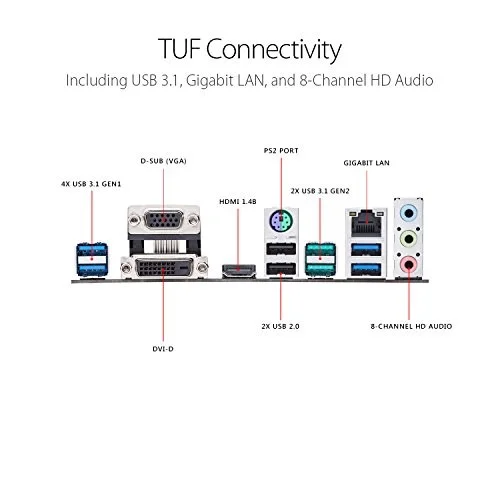

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TUF B350M-PLUS GAMING |
| SKU Code | TUF B350M-PLUS GAMING |
| GTIN / EAN | 889349741825 |
Price History (last 12 months)
Plots available price points within the past 12 months.
