Description

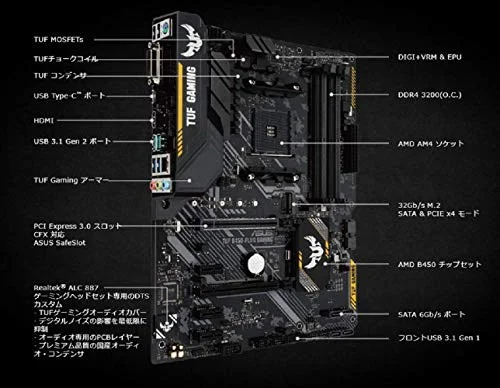

The ASUS TUF B450-Plus is a ATX motherboard for AM4. It supports DDR4 memory up to 4400 MT/s (OC).
- 2Nd Generation AMD Ryzen AM4 Processors Maximize Connectivity And Speed With Nvme M.2, USB 3.1 Gen2 And Gigabit LAN
- Military-Grade TUF Components Like TUF Languard, TUF Chokes, TUF Capacitors, And TUF Mosfets Maximize Durability

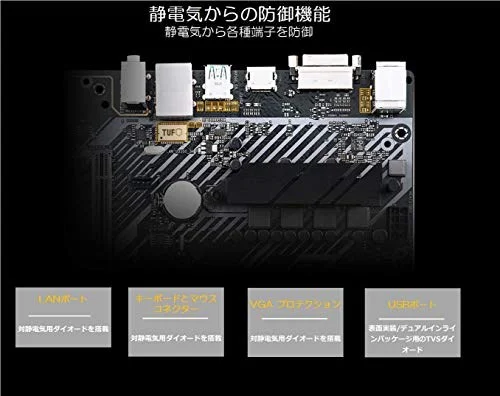

- TUF Protection With Safe Slot And Overvoltage Protection Ensures Component Stability And Dependability
- Unmatched Personalization With ASUS Exclusive Aura Sync RGB Lighting And Additional RGB Header
- 3-Year Warranty For Guaranteed Reliability Built On Military-Grade Engineering
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | B450-PLUS GAMING TUF B450-PLUS GAMING 90MB0YM0-M0EAY0 |
| Launch Date | November 2018 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B450 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-4400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B450-PLUS GAMING |
| SKU Code | B450-PLUS GAMING |
| GTIN / EAN | 192876075944 |
