ASUS TUF Gaming B450-PLUS II AM4 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

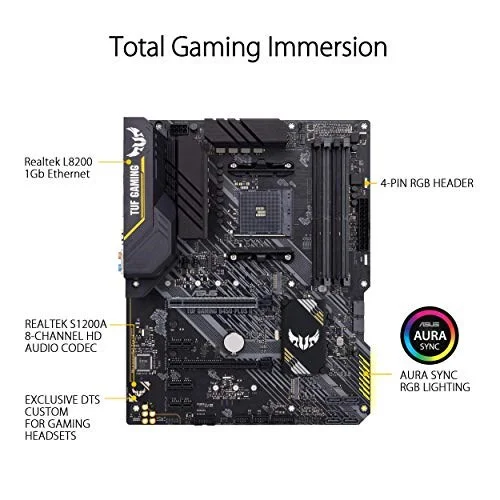

The ASUS TUF Gaming B450-PLUS II is a ATX motherboard for AM4. It supports DDR4 memory up to 4400 MT/s (OC).
- AMD AM4 Socket: Compatible To Ryzen 5000, 3Rd/2Nd/1St Gen AMD Ryzen Cpus
- Robust Power Design: Drmos Power Stages With High-Quality Alloy Chokes And Durable Capacitors To Provide Reliable Power For The Last AMD High-Count-Core Cpus
- Optimized Thermal Solution: Fanless VRM And PCH Heatsink, Multiple Hybrid Fan Headers And Fan Speed Management With Fan Xpert 2 Utility

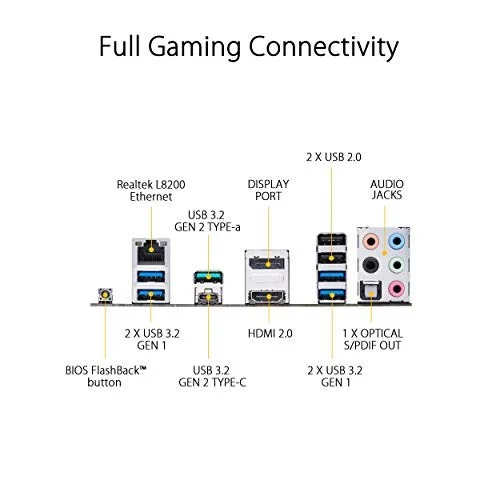

- Gaming Connectivity: Supports HDMI 2.0B (4K@60HZ) And Displayport 1.2 Output, Featuring Dual M.2 Slots (Nvme SSD), Front Panel USB 3.2 Gen 2 Type-A Connector, USB 3.2 Gen 2 Type-A Port
- Industry-Leading Gaming Audio & AI Noise Canceling Microphone Technology: Codec With DTS Sound Unbound Draws You Deeper Into The Action. Communicate Clearly With ASUS AI Noise Cancelling Mic Technology.
- Gaming Look And Feel: 1X RGB Header Onboard With ASUS Exclusive Armoury Crate Utility
- DIY Friendly: With BIOS Flashback And ASUS Exclusive UEFI BIOS, 256Mb BIOS Flash ROM
- Please Ensure Your BIOS Is Up To Date If Installing A Compatible Ryzen 5000 Series CPU. Visit ASUS Site Search By Motherboard Model Name, Click On “Support” Tab, Drivers And Tools, Then BIOS & Firmware To Download The Latest BIOS.
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | TUF GAMING B450-PLUS II 90MB1650-M0AAY0 |
| Launch Date | October 2020 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B450 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-4400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TUF GAMING B450-PLUS II |
| SKU Code | TUF GAMING B450-PLUS II |
| GTIN / EAN | 192876957493 |
