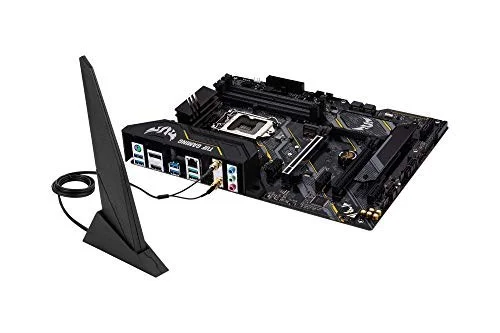

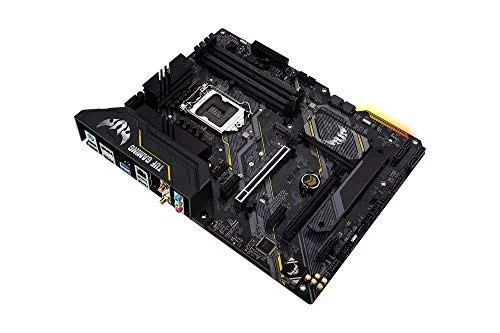

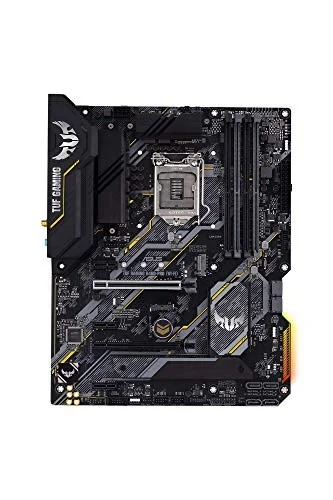

ASUS TUF GAMING B460-PRO (WI-FI) LGA1200 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
$29.99 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS TUF GAMING B460-PRO (WI-FI) is a ATX motherboard for LGA1200. It supports DDR4 memory up to 2933 MT/s (OC).
- Intel LGA 1200 Socket: Ready For 10Th Gen Intel Core Processors
- Comprehensive Cooling: VRM Heatsink, M. 2 Heatsink, PCH Heatsink
- Made For Online Gaming: Intel Wifi 6 802. 11Ax, Intel 1Gb Lan, TUF Languard And Turbo LAN Technology
- Aura Sync RGB Lighting: Synchronizable LED Effects Across A Vast Portfolio Of Compatible PC Gear, Including Addressable Gen 2 RGB Header
- Realtek S1200A Codec: Pristine Audio Quality With Unprecedented 108 Db Signal-To-Noise Ratio For Stereo Line Out And 103 Db SNR For Line In
- Enhanced Power Solution: 8 Power Stages, Military-Grade TUF Components, And Digi+ VRM For Maximum Durability
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | TUF GAMING B460-PRO (WI-FI) 90MB13P0-M0EAY0 |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel B460 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

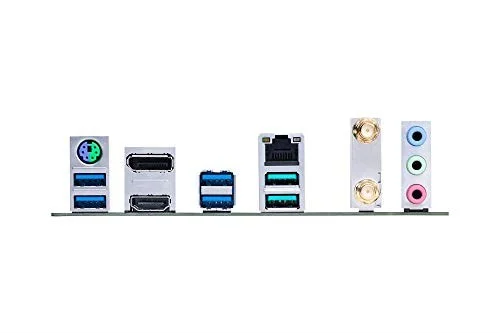

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TUF GAMING B460-PRO (WI-FI) |
| SKU Code | TUF GAMING B460-PRO (WI-FI) |
| GTIN / EAN | 192876719763 |
