ASUS TUF GAMING B460M-PLUS (WI-FI) LGA1200 Micro-ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

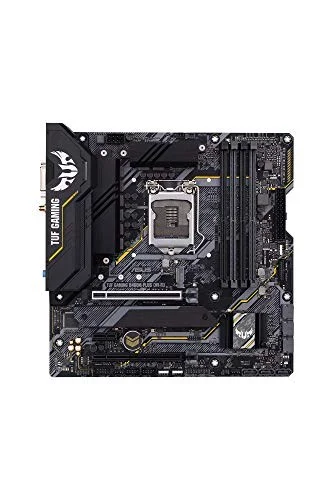

The ASUS TUF GAMING B460M-PLUS (WI-FI) is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 2933 MT/s (OC).
- Intel LGA 1200 Socket: Ready For 10Th Gen Intel Core Processors
- Enhanced Power Solution: 6+1+1 Power Stages, Military-Grade TUF Components, And Digi+ VRM For Maximum Durability

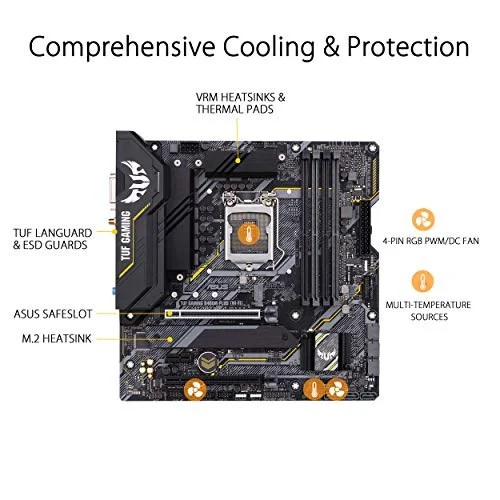

- Comprehensive Cooling: VRM Heatsink, M.2 Heatsink, PCH Heatsink

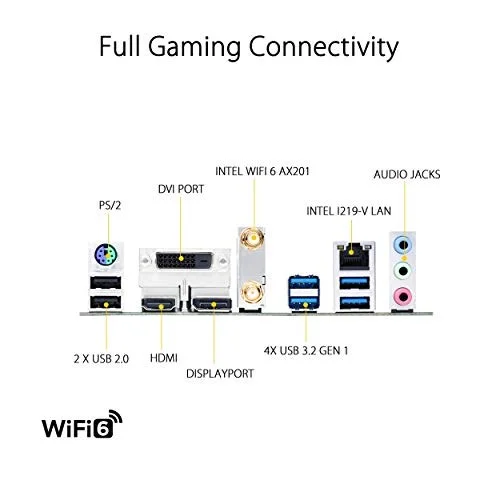

- Made For Online Gaming: Intel Wifi 6 802.11Ax, Intel Ethernet Connection I219-V, TUF Languard And Turbo LAN Technology

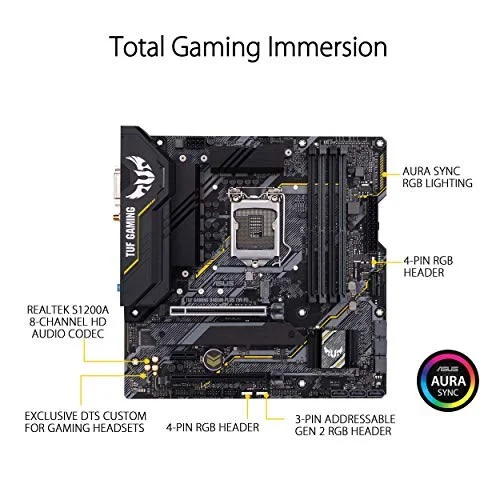

- Realtek S1200A Codec: Pristine Audio Quality With Unprecedented 108 Db Signal-To-Noise Ratio For Stereo Line Out And 103 Db SNR For Line In
- Aura Sync RGB Lighting: Synchronizable LED Effects Across A Vast Portfolio Of Compatible PC Gear, Including Addressable Gen 2 RGB Strips
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | TUF GAMING B460M-PLUS (WI-FI) 90MB1440-M0EAY0 90MB1440-M0AAY0 |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel B460 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TUF GAMING B460M-PLUS (WI-FI) |
| SKU Code | TUF GAMING B460M-PLUS (WI-FI) |
| GTIN / EAN | 192876713693 |
