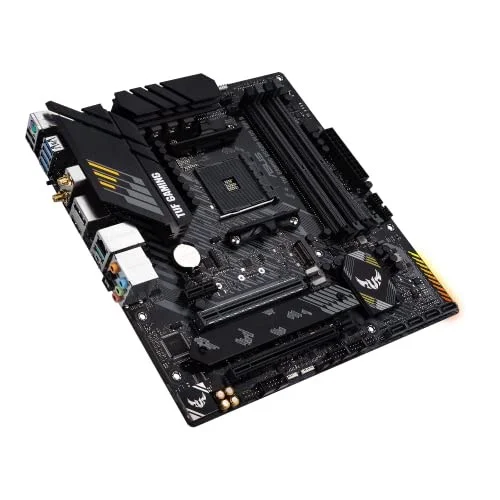

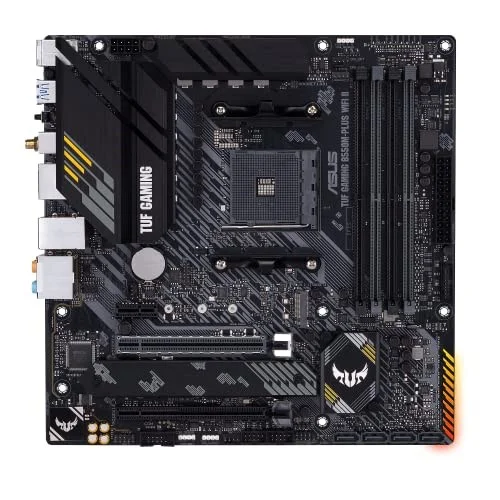

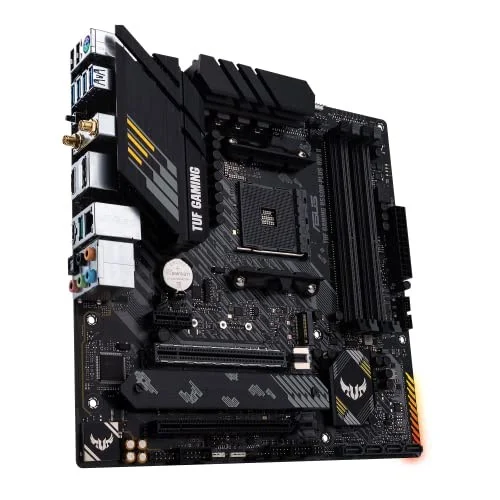

ASUS TUF GAMING B550M-PLUS WiFi II AM4 Micro-ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS TUF GAMING B550M-PLUS WiFi II is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4866 MT/s (OC).
- AMD AM4 Socket and PCIe 4.0: The perfect pairing for 3rd Gen AMD Ryzen CPUs
- Robust Power Design: 8+2 DrMOS power stages with high-quality alloy chokes and durable capacitors to provide reliable power for the last AMD high-count-core CPUs
- Optimized Thermal Solution: Fanless VRM and PCH heatsink, multiple hybrid fan headers and fan speed management with Fan Xpert 4 or the UEFI Q-Fan Control utility
- High-performance Gaming Networking: WiFi 6 (802.11ax), 2.5 Gb LAN with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI 2.1 (4K@60HZ) and DisplayPort 1.2 output, featuring dual M.2 slots (NVMe SSD)-one with PCIe 4.0 x4 connectivity, front panel USB 3.2 Gen 1 connector, USB 3.2 Gen 2 Type-C & Type-A ports
- Industry-leading Gaming Audio & AI Noise Cancelling Mic Technology: High fidelity audio from a SupremeFX S1220A codec with DTS Sound Unbound and Sonic Studio III draws you deeper into the action. Communicate clearly with ASUS AI Noise Cancelling Mic technology.
- Gaming Look and Feel: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and a Gen 2 addressable RGB header for greater customization
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | TUF GAMING B550M-PLUS WIFI II 90MB19Y0-MVAAY0 90MB19Y0-M0AAY0 |
| Launch Date | March 2022 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B550 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4333 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-4866 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

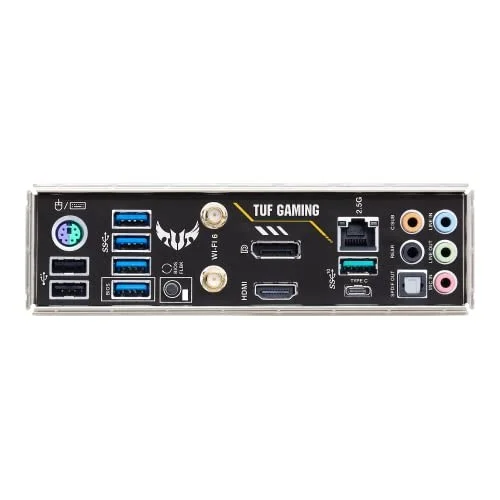

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TUF GAMING B550M-PLUS WIFI II |
| SKU Code | TUF GAMING B550M-PLUS WIFI II |
| GTIN / EAN | 195553305716 |
Price History (last 12 months)
Plots available price points within the past 12 months.
