ASUS TUF Gaming B850-PLUS WiFi AM5 ATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS TUF Gaming B850-PLUS WiFi is a ATX motherboard for AM5. It supports DDR5 memory up to 8000 MT/s (OC).
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

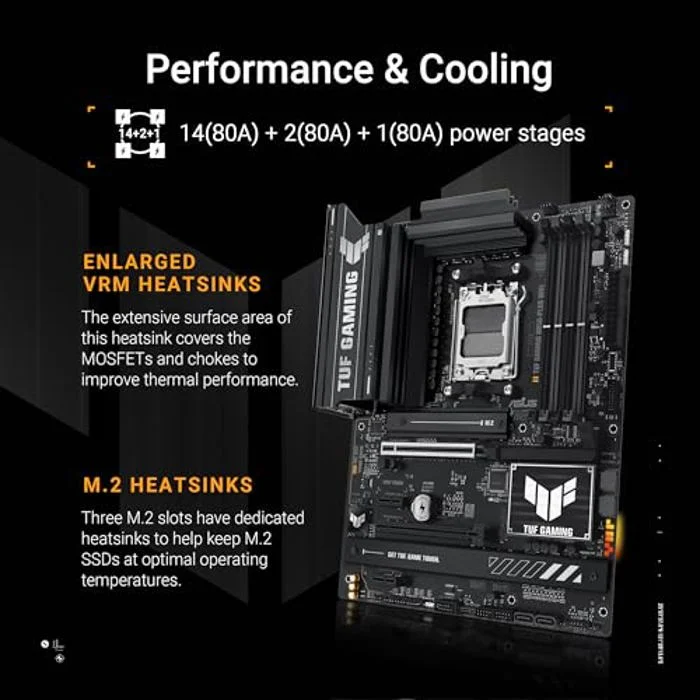

- Enhanced Power Solution: 14+2+1 80A DrMOS power stages, 8-layer PCB, 8+8 pin ProCool power connectors, alloy chokes and durable capacitors for stable power delivery
- Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, equipped with all M.2 heatsinks
- Ultrafast Connectivity: Wi-Fi 7, PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, rear USB 20Gbps Type-C port, front USB 10Gbps Type-C connector, Thunderbolt (USB4) header support
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | TUF GAMING B850-PLUS WIFI 90MB1J30-M0AAY0 90MB1J30-M0EAY0 |
| Launch Date | January 2025 |
| CPU Socket | AM5 |
| Chipset Model | Intel B850 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-8000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TUF GAMING B850-PLUS WIFI |
| SKU Code | TUF GAMING B850-PLUS WIFI |
| GTIN / EAN | 197105781603 |
