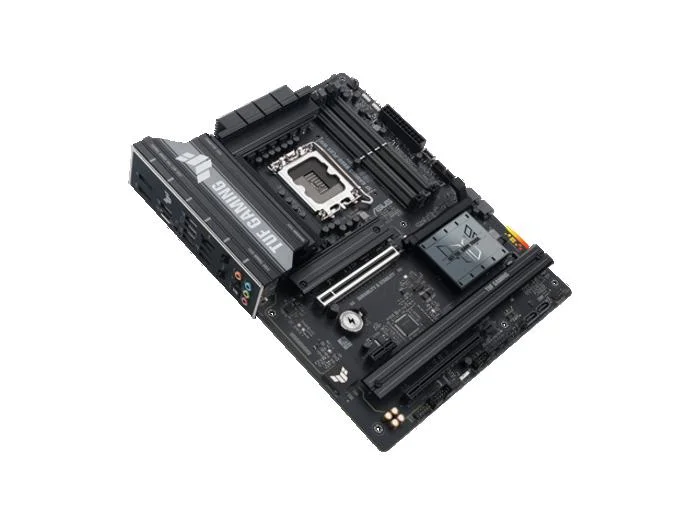

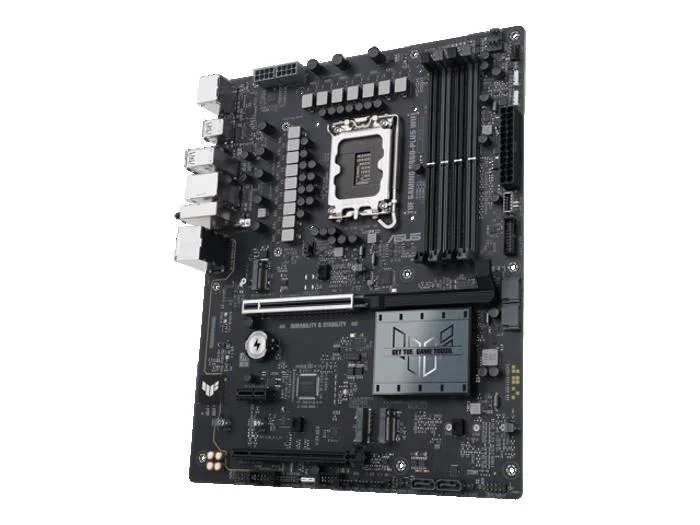

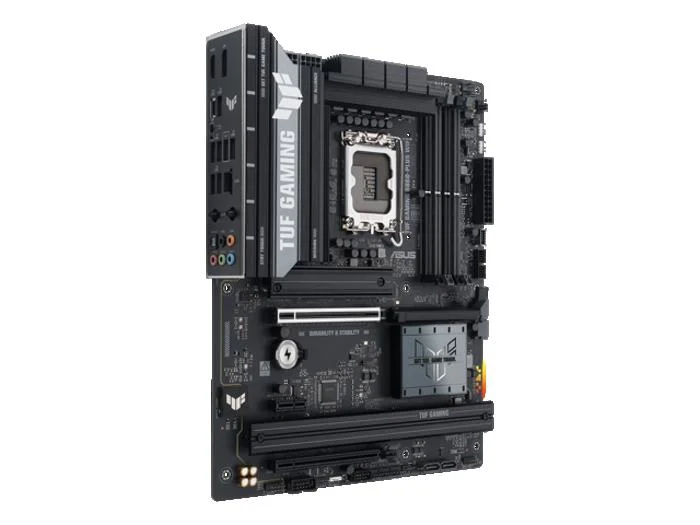

Asus TUF GAMING B860-PLUS WIFI LGA1851 ATX DDR5 256 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus TUF GAMING B860-PLUS WIFI is a ATX motherboard for LGA1851. It supports DDR5 memory up to 8600 MT/s (OC).
- ASUS TUF GAMING B860-PLUS WIFI B860 LGA 1851 mATX motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-ready, 12+1+2+1 stages, DDR5 ,PCIe 5.0, 3x M.2, Wi-Fi 7, 2.5Gb LAN, USB 20Gbps Type-C Memory Standard: Up to 8666+MT/s (OC) Number of Memory Slots: 4x288pin (DDR5) PCI Express 5.0 x16: Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot PCI Express 4.0 x16: Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)* Max LAN Speed: 2.5Gbps CPU Type: Intel Core Ultra Processors (Series 2) Maximum Memory Supported: 192GB Channel Supported: Dual Channel
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | TUF GAMING B860-PLUS WIFI 90MB1JL0-M0AAY0 |
| Launch Date | January 2025 |
| CPU Socket | LGA1851 |
| Chipset Model | Intel B860 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-8600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |

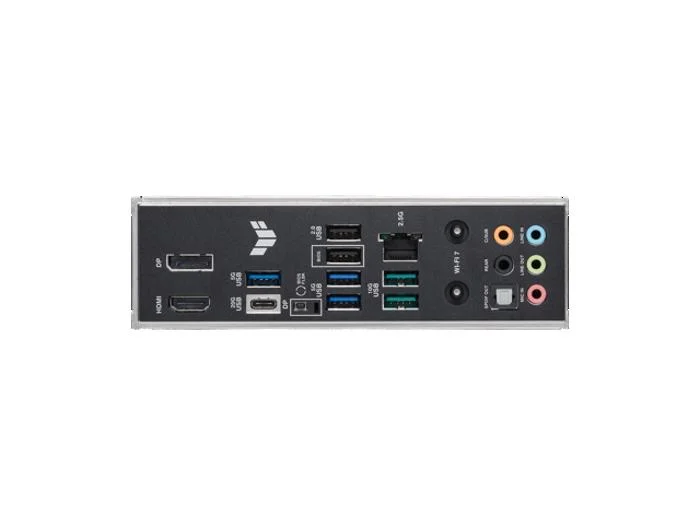

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TUF GAMING B860-PLUS WIFI |
| SKU Code | TUF GAMING B860-PLUS WIFI |
| GTIN / EAN | 197105815148 |
