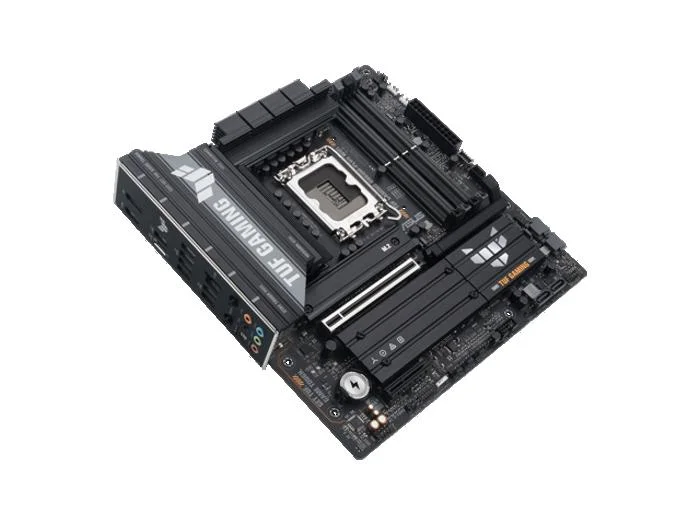

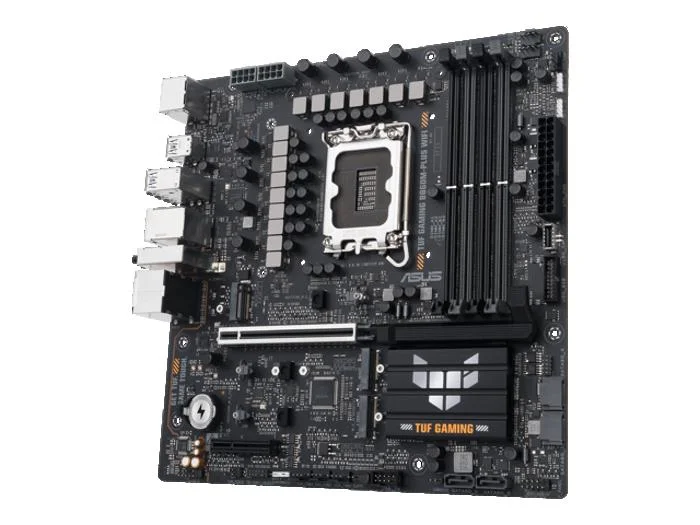

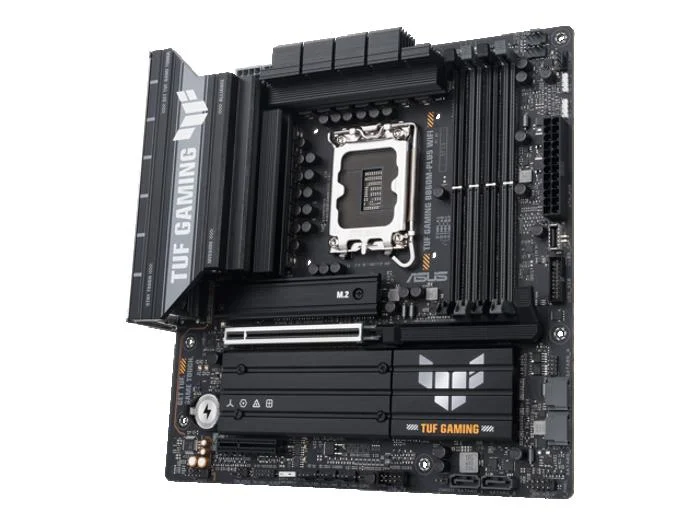

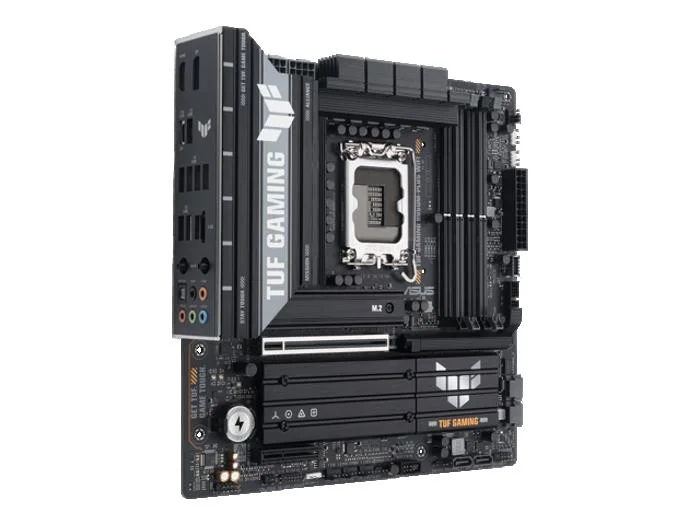

Asus TUF GAMING B860M-PLUS WIFI LGA1851 Micro-ATX DDR5 256 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus TUF GAMING B860M-PLUS WIFI is a Micro-ATX motherboard for LGA1851. It supports DDR5 memory up to 8800 MT/s (OC).
- ASUS TUF GAMING B860M-PLUS WIFI B860 LGA 1851 mATX motherboard, Intel Core Ultra Series 2 Ready, AI PC, 12+1+2+1 80A stages, DDR5 ,PCIe 5.0, 3x M.2, Wi-Fi 7, 2.5G LAN, HDMI, USB 20Gbps Type-C Memory Standard: Up to 8800+ MT/s (OC) Number of Memory Slots: 4x288pin (DDR5) PCI Express 5.0 x16: Intel Core Ultra Processors(series 2) 1 x PCIe 5.0 x16 slot Max LAN Speed: 2.5Gbps CPU Type: Intel Core Ultra Processors (Series 2) Maximum Memory Supported: 192GB Channel Supported: Dual Channel PCI Express x4: Intel B860 Chipset 1 x PCIe 4.0 x4 slot
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | TUF GAMING B860M-PLUS WIFI 90MB1JV0-M0AAY0 |
| Launch Date | January 2025 |
| CPU Socket | LGA1851 |
| Chipset Model | Intel B860 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-8800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TUF GAMING B860M-PLUS WIFI |
| SKU Code | TUF GAMING B860M-PLUS WIFI |
| GTIN / EAN | 197105783096 |
