Description

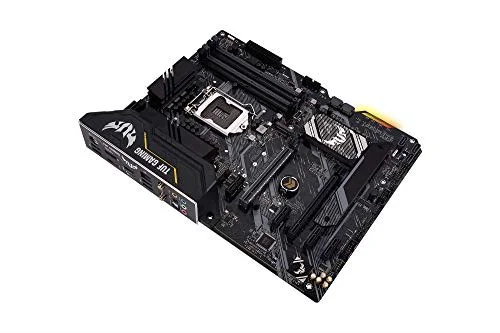

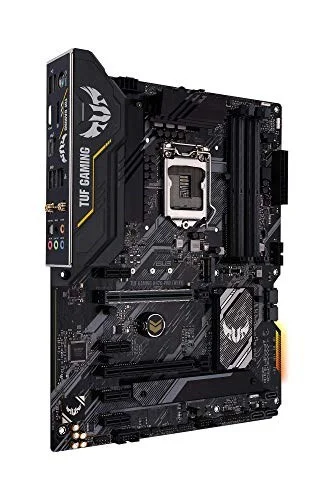

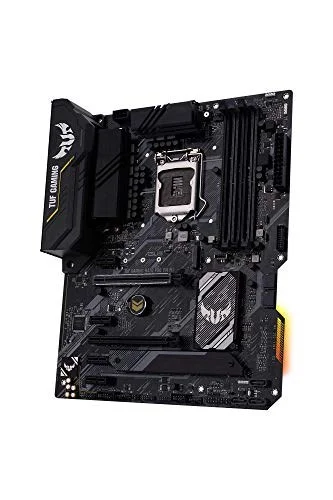

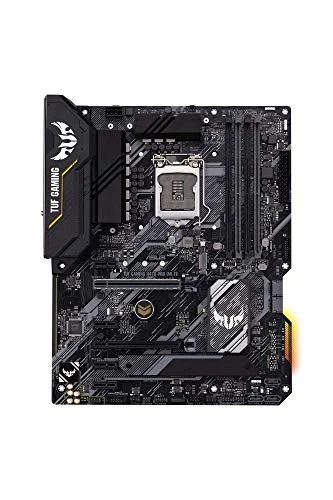

The ASUS TUF GAMING H470-PRO (WI-FI) is a ATX motherboard for LGA1200. It supports DDR4 memory up to 2933 MT/s (OC).
- Intel LGA 1200 Socket: Ready For 10Th Gen Intel Core Processors
- Comprehensive Cooling: VRM Heatsink, M. 2 Heatsink, PCH Heatsink
- Made For Online Gaming: Intel Wifi 6 802. 11Ax, Intel 1Gb Lan With TUF Languard And Turbo LAN Technology
- Aura Sync RGB Lighting: Synchronizable LED Effects Across A Vast Portfolio Of Compatible PC Gear, Including Addressable Gen 2 RGB Header
- Realtek S1200A Codec: Pristine Audio Quality With Unprecedented 108 Db Signal-To-Noise Ratio For Stereo Line Out And 103 Db SNR For Line In
- Enhanced Power Solution: 10 Power Stages, Military-Grade TUF Components, And Digi+ VRM For Maximum Durability
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | TUF GAMING H470-PRO (WI-FI) |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel H470 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 4 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 4 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 5 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TUF GAMING H470-PRO (WI-FI) |
| SKU Code | TUF GAMING H470-PRO (WI-FI) |
| GTIN / EAN | 192876720387 |
