Description

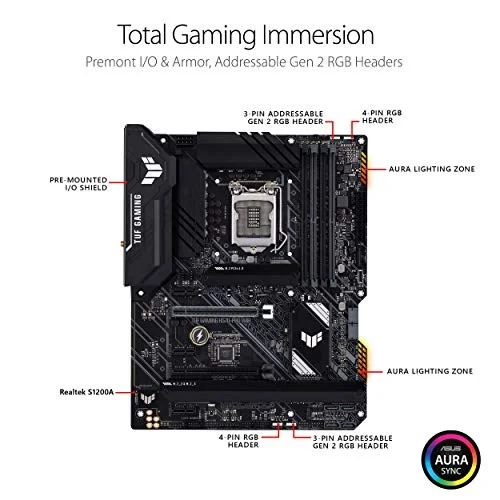

The ASUS TUF Gaming H570-PRO WiFi is a ATX motherboard for LGA1200. It supports DDR4 memory up to 5000 MT/s (OC).
- Intel LGA 1200 socket: Ready for 11th Gen Intel Core processors

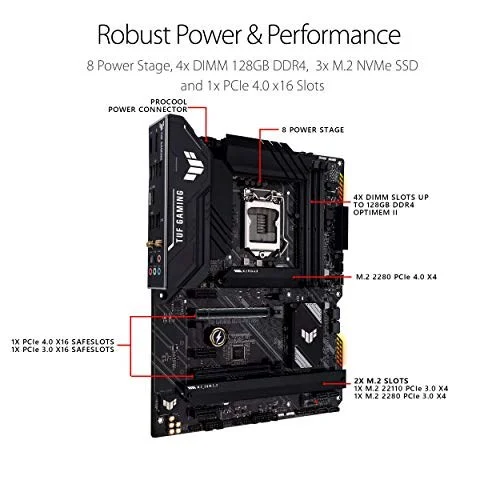

- Enhanced power solution: 8+1 power stages, six-layer PCB, ProCool socket, military-grade TUF components and Digi+ VRM for maximum durability

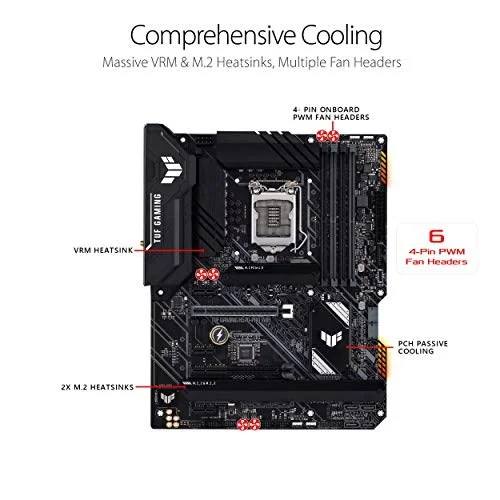

- Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility

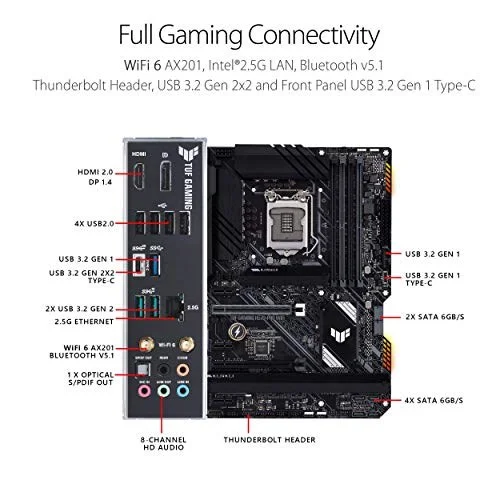

- Next-gen connectivity: PCIe 4.0, rear USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 1 Type-C and Thunderbolt 4 support
- Made for online gaming: Intel WiFi 6, Realtek 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | TUF GAMING H570-PRO WIFI 90MB16L0-M0EAY0 90MB16L0-M0AAY0 |
| Launch Date | February 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel H570 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 / DDR4-3333 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-4000 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key (Intel 11th Gen only), 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TUF GAMING H570-PRO WIFI |
| SKU Code | TUF GAMING H570-PRO WIFI |
| GTIN / EAN | 195553130592 |
