ASUS TUF GAMING X570-PLUS AM4 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS TUF GAMING X570-PLUS is a ATX motherboard for AM4. It supports DDR4 memory up to 5100 MT/s (OC).
- AMD AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen processors to maximize connectivity and speed with up to two M. 2 Drives, USB 3. 2 Gen2 and AMD Store MI
- Enhanced power solution: military-grade TUF Gaming components, Precools socket and Digi+ VRM for maximum durability

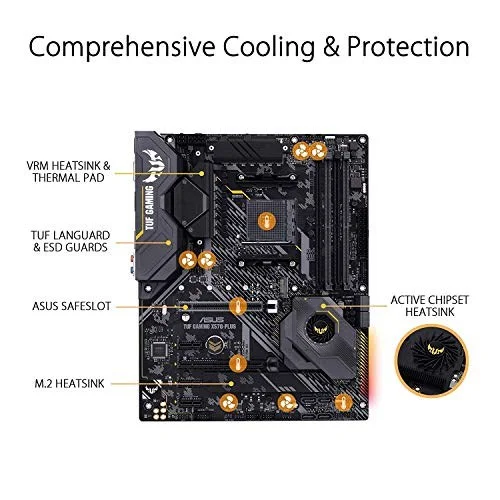

- Comprehensive Cooling: Active PCH heatsink, VRM heatsink, M. 2 heatsink, hybrid fan headers and Fan Expert 4

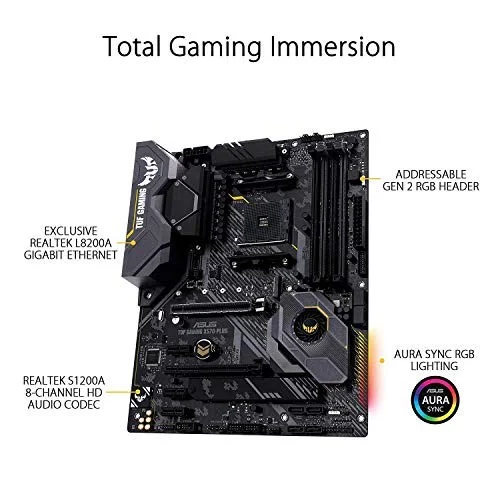

- Next-Gen Connectivity: Dual Pie 4. 0 M. 2, USB 3. 2 Gen 2 ports, exclusive Relate L8200A Gigabit Ethernet, TUF Languid and Turbo LAN technology
- Relate S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | TUF GAMING X570-PLUS 90MB1180-M0EAY0 90MB1180-M0AAY0 |
| Launch Date | July 2019 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 / DDR4-5100 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 2 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

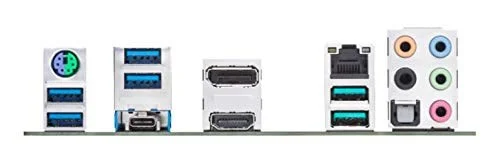

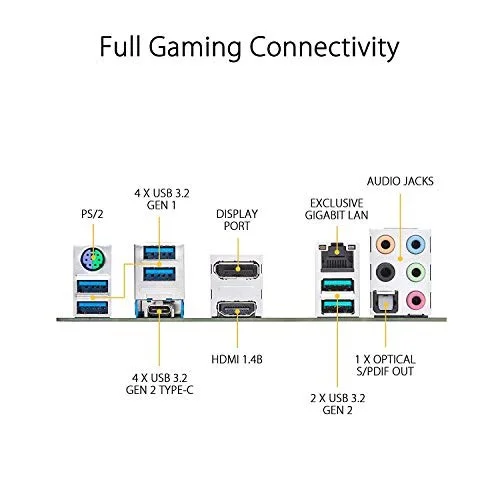

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TUF GAMING X570-PLUS |
| SKU Code | TUF GAMING X570-PLUS |
| GTIN / EAN | 192876388457 |
