ASUS TUF GAMING X570-PLUS (WI-FI) AM4 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS TUF GAMING X570-PLUS (WI-FI) is a ATX motherboard for AM4. It supports DDR4 memory up to 5100 MT/s (OC).
- AMD AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen processors to maximize connectivity and speed with up to two M. 2 Drives, USB 3. 2 Gen2 and AMD StoreMI

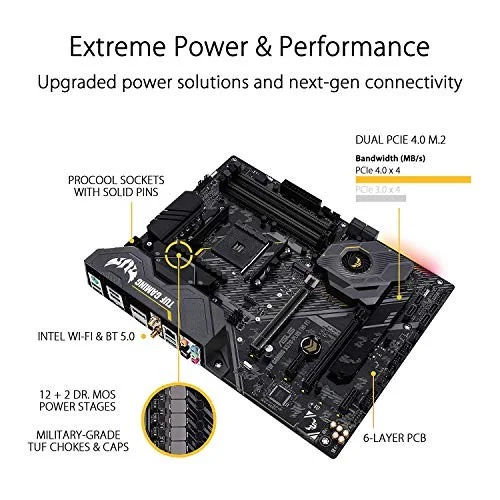

- Enhanced power solution: military-grade TUF components, ProCool socket and Digi+ VRM for maximum durability

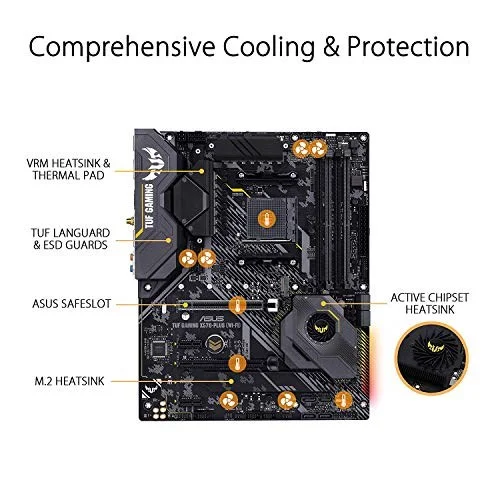

- Comprehensive Cooling: Active PCH heatsink, VRM heatsink, M. 2 heatsink, hybrid fan headers and Fan Xpert
- Next-gen connectivity: Dual PCIe 4. 0 m. 2 and USB 3. 2 Gen 2 Type-A/Type-C

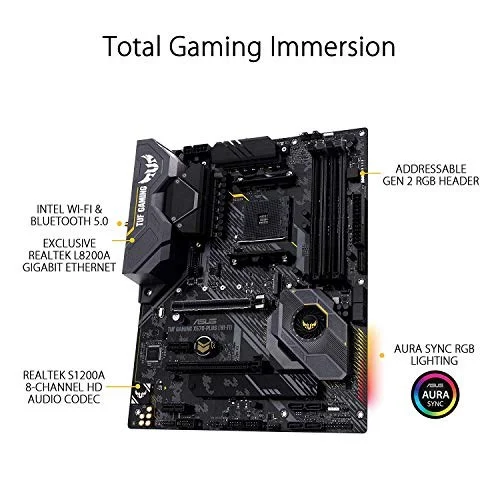

- Gaming Networking: Exclusive Realtek L8200A Gigabit Ethernet, Intel 2x2 802. 11ac Wi-Fi with MU-MIMO support, Bluetooth 5. 0, TUF LANGuard and technology
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | TUF GAMING X570-PLUS (WI-FI) 90MB1170-M0EAY0 90MB1170-MVAAY0 90MB1170-M0AAY0 |
| Launch Date | July 2019 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 / DDR4-5100 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TUF GAMING X570-PLUS (WI-FI) |
| SKU Code | TUF GAMING X570-PLUS (WI-FI) |
| GTIN / EAN | 192876388495 |
Price History (last 12 months)
Plots available price points within the past 12 months.
