Asus TUF GAMING X870E-PLUS WIFI7 AM5 ATX DDR5 256 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
£42.10 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

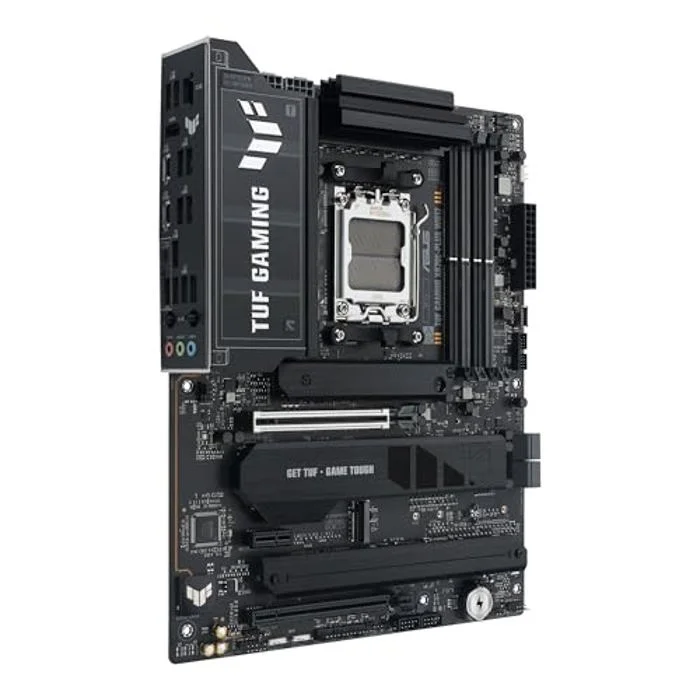

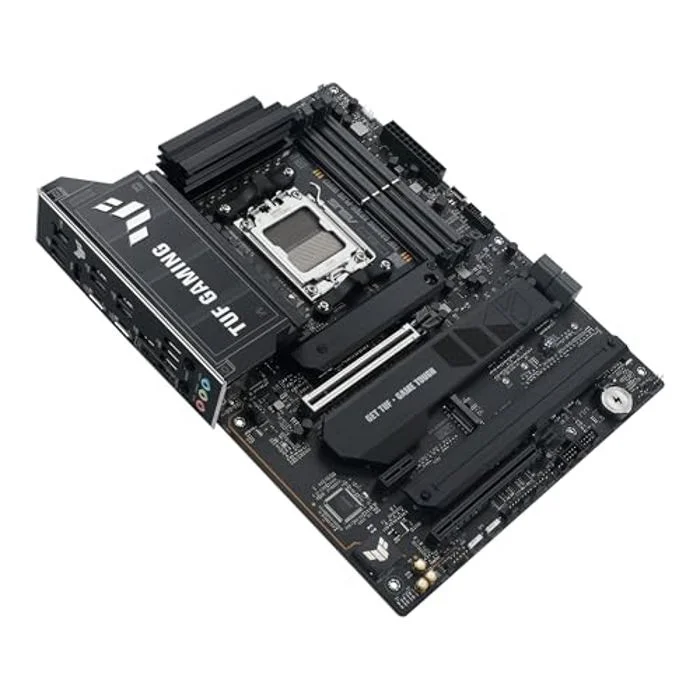

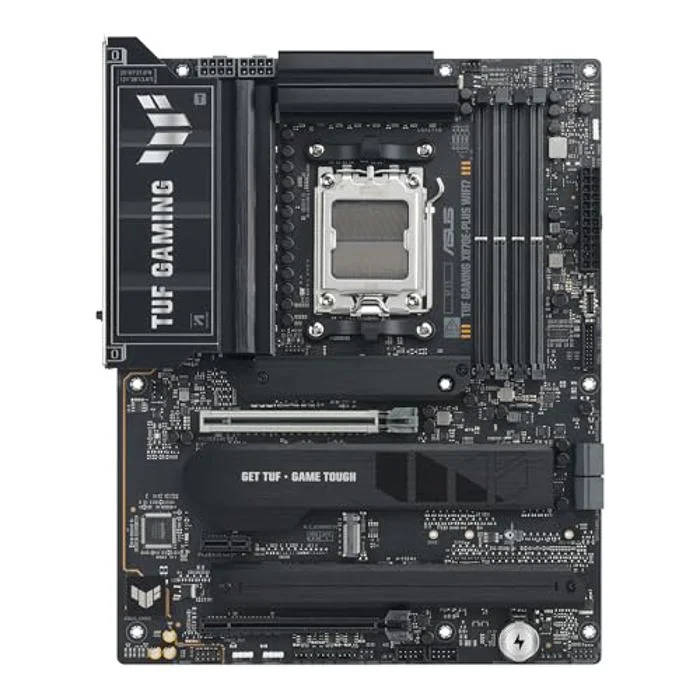

The Asus TUF GAMING X870E-PLUS WIFI7 is a ATX motherboard for AM5. It supports DDR5 memory up to 8000 MT/s (OC).
- Advanced AI PC Ready: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: AMD Socket AM5 Ready for AMD Ryzen Desktop Processors 9000 and 8000 and 7000 Series
- Upgraded Power Solution - 16+2+1 80A power stages, 8-layer printed circuit board, 8+8-pin ProCool power connectors, alloy chokes and durable capacitors for stable power supply
- Intelligent control: ASUS exclusive AI Overclocking, AI Cooling II, AI Networking II, and AEMP to simplify setup and improve performance
- Next-generation M.2 support: Two built-in M.2 PCIe 5.0 slots and two M.2 PCIe 4.0 slots
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | TUF GAMING X870E-PLUS WIFI7 90MB1M70-M0EAY0 |
| Launch Date | |
| CPU Socket | AM5 |
| Chipset Model | Intel X870E |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR5-4400 / DDR5-8000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2280 - M Key, 2280 - M Key |
| SATA III Ports | 0 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |

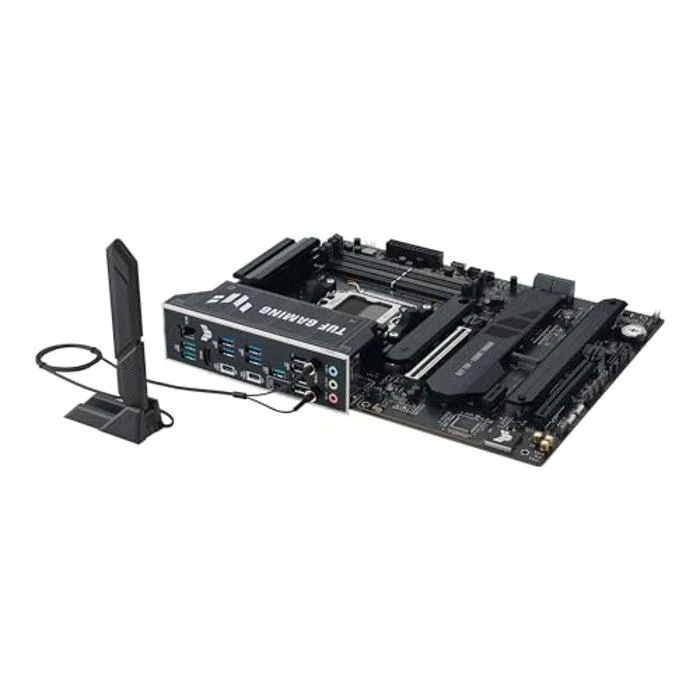

| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |

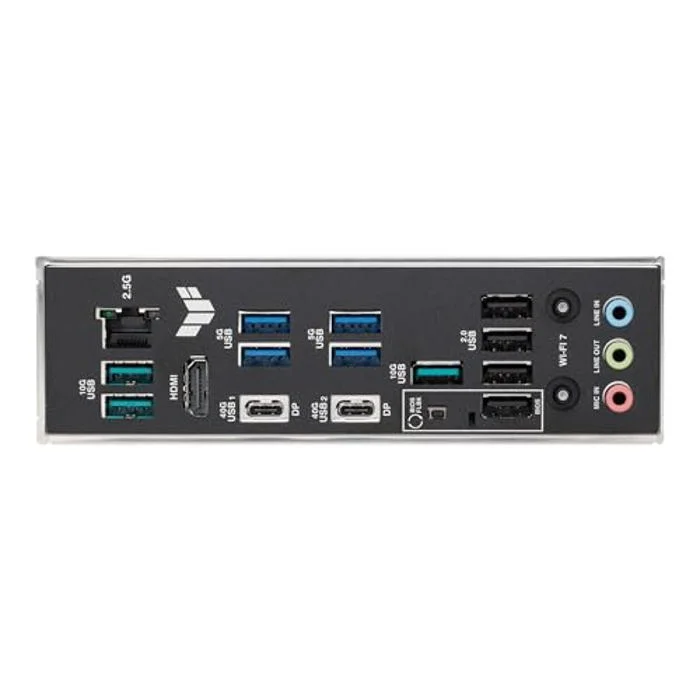

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TUF GAMING X870E-PLUS WIFI7 |
| SKU Code | TUF GAMING X870E-PLUS WIFI7 |
| GTIN / EAN | 199291100343 |
