ASUS TUF GAMING Z590-PLUS LGA1200 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS TUF GAMING Z590-PLUS is a ATX motherboard for LGA1200. It supports DDR4 memory up to 5133 MT/s (OC).
- Intel LGA 1200 Socket: Designed To Unleash The Maximum Performance Of 11Th Gen Intel Core Processors

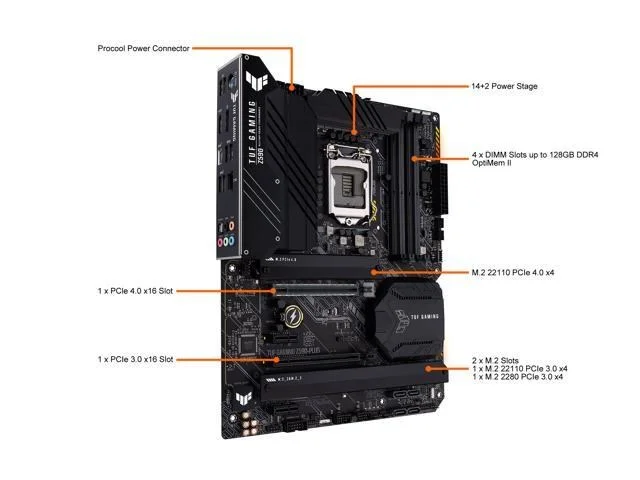

- Enhanced Power Solution: 14+2 Drmos Power Stages, Procool Sockets, Military-Grade TUF Components, And Digi+ VRM For Maximum Durability And Performance
- Comprehensive Cooling : VRM Heatsink, PCH Fanless Heatsink, M.2 Heatsink, Hybrid Fan Headers And Fan Xpert 4 Utility
- Ultra Fast Gaming Networking : Intel I225-V 2.5Gb LAN, TUF Languard And Turbolan Technology

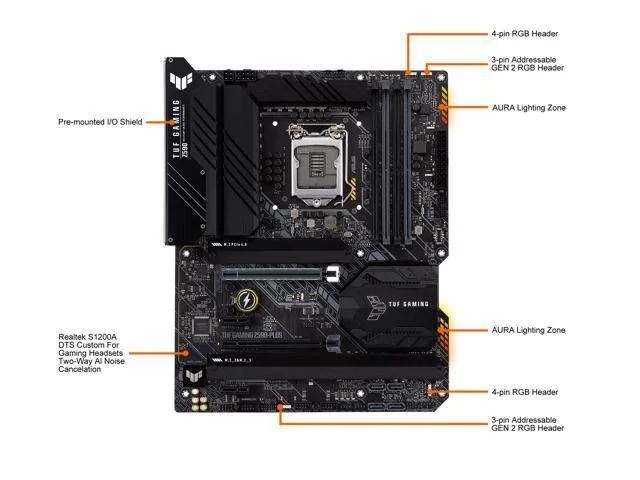

- Fastest Connectivity: Triple M.2/Nvme SSD, Front Panel USB 3.2 Gen 1 Type-C Header And Thunderbolt 4 Header. Gaming Look And Feel: Synchronizable LED Effects Across A Vast Portfolio Of Compatible PC Gear, Including Addressable RGB Strips With Aura Sync. Immersive Gaming Audio & AI Noise Cancelation: The Realtek S1200A Codec Offers Pristine Audio Quality To Draw You Deeper Into The Game Action Or To Enhance Your Favorite Music Tracks Or Videos.Communicate Clearly With ASUS AI Noise Canceling Mic Technology. PC DIY Friendly: Pre-Mount I/O Shield
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | TUF GAMING Z590-PLUS 90MB16B0-M0AAY0 |
| Launch Date | February 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z590 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-5000 / DDR4-5133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key (Intel 11th Gen only), 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

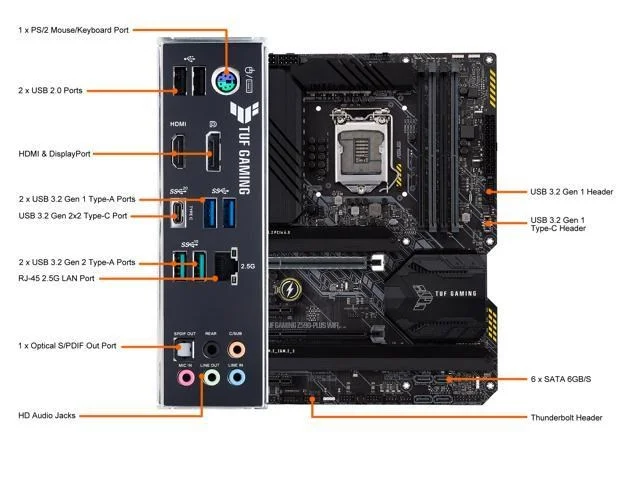

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TUF GAMING Z590-PLUS |
| SKU Code | TUF GAMING Z590-PLUS |
| GTIN / EAN | 195553111263 |
Price History (last 12 months)
Plots available price points within the past 12 months.
