ASUS TUF Gaming Z690-Plus WiFi LGA1700 ATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS TUF Gaming Z690-Plus WiFi is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6000 MT/s (OC).
- Intel LGA 1700 socket: Ready for 12th Gen Intel Core processors, support PCIe 5.0, DDR5 and out of box Windows 11 ready

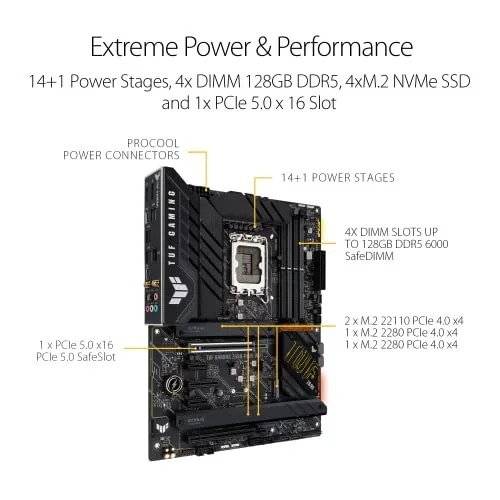

- Enhanced Power Solution: 14+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability and performance
- Comprehensive Cooling : VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- Ultra Fast Gaming Networking : WiFi 6 AX201 (802.11 ax), Intel I225-V 2.5Gb LAN, TUF LANGuard and TurboLAN technology

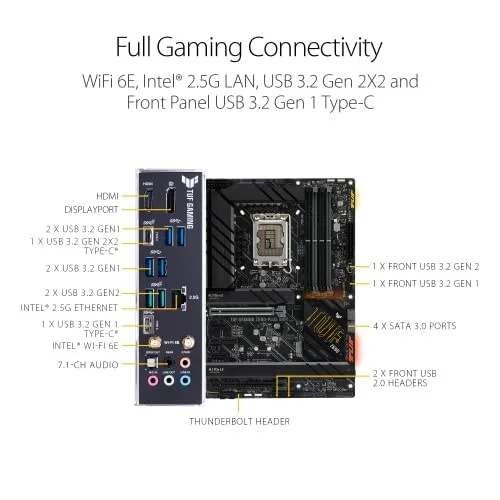

- Fastest Connectivity: 4x M.2/NVMe SSD, Front panel USB 3.2 Gen 2 Type-C header, USB Gen 2x2 Type-C and Thunderbolt 4 header
- PC DIY Friendly: SafeDIMM, PCIe 5.0 Safeslot, Q-LED, M.2 Q-Latch, Pre-mount I/O shield
- New TUF Gaming Aesthetics: New ID design, Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips with Aura Sync
- Immersive Gaming Audio & AI Noise Cancellation: The Realtek S1200A codec offers pristine audio quality to draw you deeper into the game action or to enhance your favorite music tracks or videos. Communicate clearly with ASUS AI Noise Canceling Mic technology
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | TUF GAMING Z690-PLUS WIFI 90MB1AW0-MVAAY0 90MB1AW0-M0AAY0 |
| Launch Date | February 2022 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x4, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TUF GAMING Z690-PLUS WIFI |
| SKU Code | TUF GAMING Z690-PLUS WIFI |
| GTIN / EAN | 195553646239 |
