Asus TUF H370-Pro Gaming (WI-FI) LGA1151 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

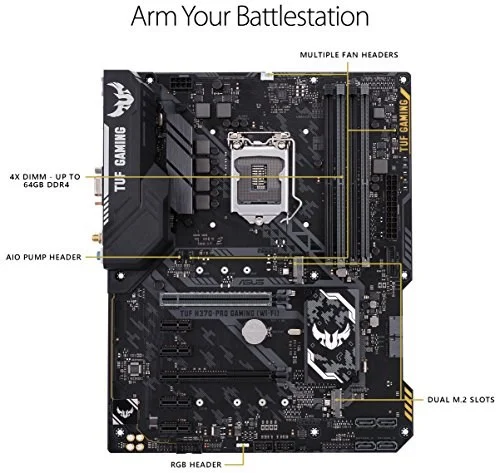

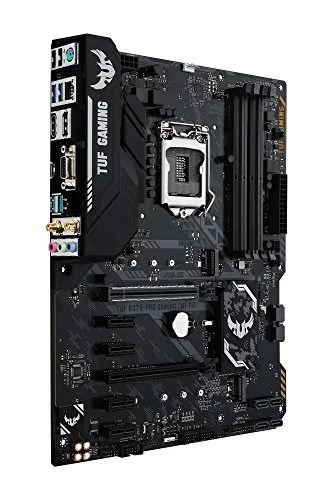

The Asus TUF H370-Pro Gaming (WI-FI) is a ATX motherboard for LGA1151. It supports DDR4 memory up to 2666 MT/s (OC).
- Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with dual M.2 (1x inside double-decker PCH heatsink, 1x back side), dual Gigabit LAN, onboard 802.11ac WiFi and Intel Optane Memory compatibility
- ASUS OptiMem improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies
- Gamer’s Guardian with Fan Xpert 4 provides hardware-level safeguards for maximum performance with dynamic system cooling
- Aura Sync RGB lighting with additional 4-pin RGB header features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products
- Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | TUF H370-Pro Gaming (WI-FI) |
| Launch Date | |
| CPU Socket | LGA1151 |
| Chipset Model | Intel H370 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 4 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 4 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |

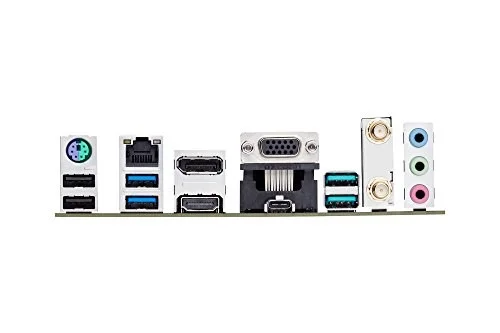

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TUF H370-Pro Gaming (WI-FI) |
| SKU Code | TUF H370-Pro Gaming (WI-FI) |
| GTIN / EAN | 889349973998 |
