ASUS TUF SABERTOOTH Z170 MARK 1 LGA1151 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

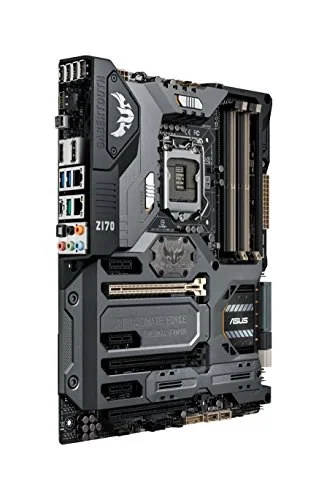

The ASUS TUF SABERTOOTH Z170 MARK 1 is a ATX motherboard for LGA1151. It supports DDR4 memory up to 2400 MT/s (OC).
- LGA1151 socket for 6th Gen Intel Core Desktop Processors
- USB 3.1 Type A/C & M.2: Ready for the next-gen devices and storage

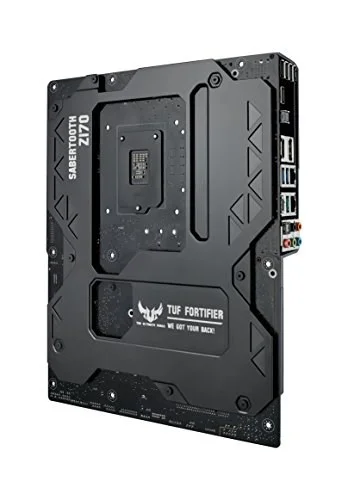

- Thermal Armor and TUF Fortifier provide ducted cooling and structural rigidity
- TUF Detective 2 places system information at your fingertips
- TUF ICe & Thermal Radar 2 provide customizable total system cooling
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | SABERTOOTH Z170 MARK 1 90MB0MG0-M0EAY0 |
| Launch Date | November 2015 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z170 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 2 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

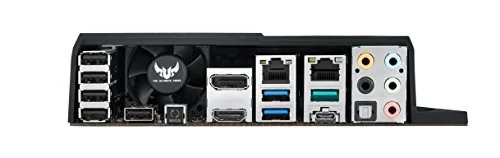

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | SABERTOOTH Z170 MARK 1 |
| SKU Code | SABERTOOTH Z170 MARK 1 |
| GTIN / EAN | 889349192993 |
Price History (last 12 months)
Plots available price points within the past 12 months.
