ASUS TUF X299 Mark 1 LGA2066 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS TUF X299 Mark 1 is a ATX motherboard for LGA2066. It supports DDR4 memory up to 4000 MT/s (OC).

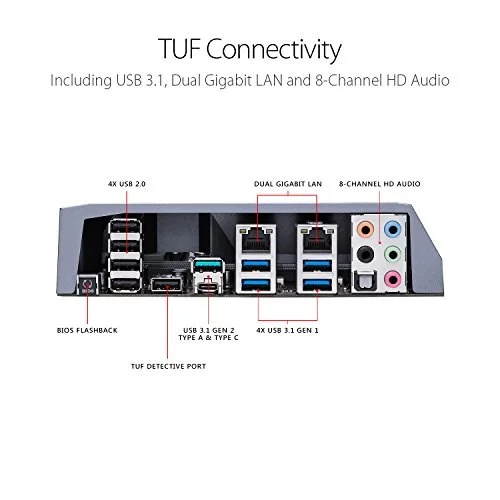

- Designed for 7th generation LGA2066 socket Intel Core X-Series processors to maximize connectivity and speed with dual M.2, front panel USB 3.1 Type-C connection, Intel VROC, and Intel Optane Memory compatibility

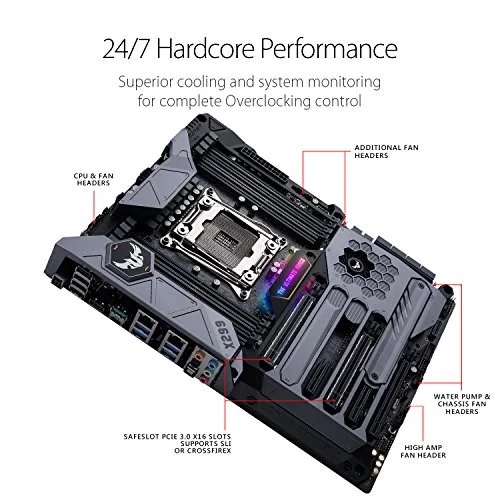

- Ultimate Protection with Thermal Radar 3 for customizable total system cooling and a 5-Year Warranty for guaranteed reliability built on Military Grade engineering
- Dual Patent-pending SafeSlots featuring an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs

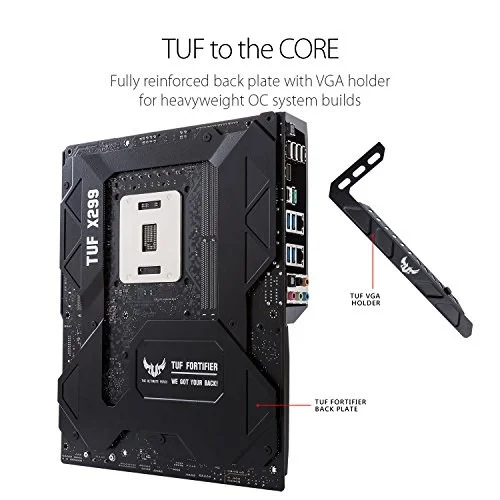

- Thermal Armor protective shielding with TUF Fortifier backplate and VGA holder provides ducted cooling plus structural rigidity with added protection for the next-generation of graphics cards
- AURA Sync RGB Lighting features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of AURA Sync enabled products
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | TUF X299 MARK 1 90MB0U00-M0EAY0 |
| Launch Date | June 2017 |
| CPU Socket | LGA2066 |
| Chipset Model | Intel X299 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-3600 / DDR4-4000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x4 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 2 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TUF X299 MARK 1 |
| SKU Code | TUF X299 MARK 1 |
| GTIN / EAN | 889349774380 |
