ASUS TUF Z270 MARK 2 LGA1151 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

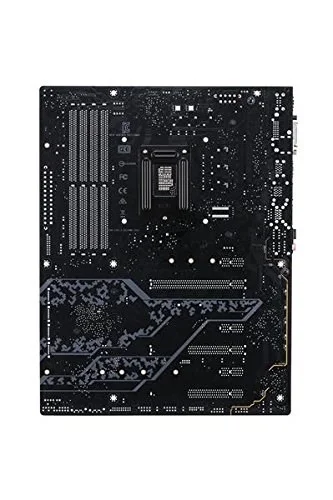

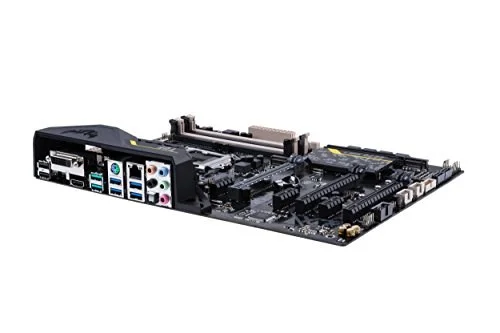

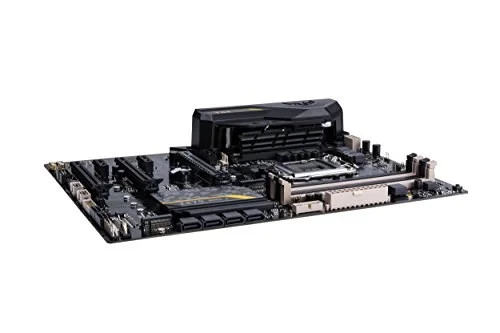

The ASUS TUF Z270 MARK 2 is a ATX motherboard for LGA1151. It supports DDR4 memory up to 3866 MT/s (OC).
- Overclocking design - Push memory frequencies and CPU performance to extremes
- Thermal Radar Core+ - Instant fan tuning and intelligent system cooling
- Qualified Vendor List (QVL) - Perfectly compatible with high-performance workstation graphics cards

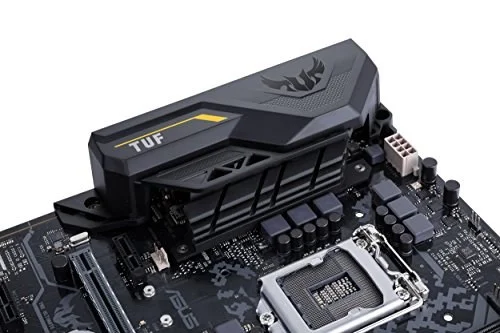

- TUF components - Certified military-grade caps, chokes & MOSFETs for tough duty
- Extensive connectivity - HDMI, DVI, dual USB 3.1 Type-A and M.2 sockets
- Dual PCI Express slots - Supports bridging of SLI graphics cards to deliver 1.5x greater transfer bandwidth
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | Z270 MK2 Z270 MARK 2 TUF Z270 MARK 2 90MB0ST0-M0EAY0 |
| Launch Date | |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z270 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z270 MK2 |
| SKU Code | Z270 MK2 |
| GTIN / EAN | 889349592052 |
