ASUS TUF Z370 Plus Gaming LGA1151 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS TUF Z370 Plus Gaming is a ATX motherboard for LGA1151. It supports DDR4 memory up to 4000 MT/s (OC).

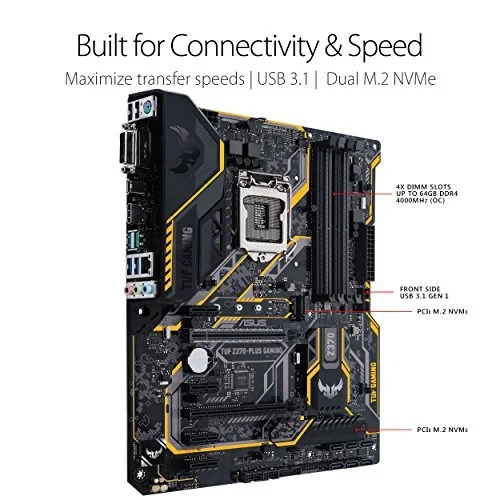

- Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with Dual M.2, Gigabit LAN, USB 3.1 Gen 2, and Intel Optane Memory compatibility
- Military-Grade TUF Components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize durability

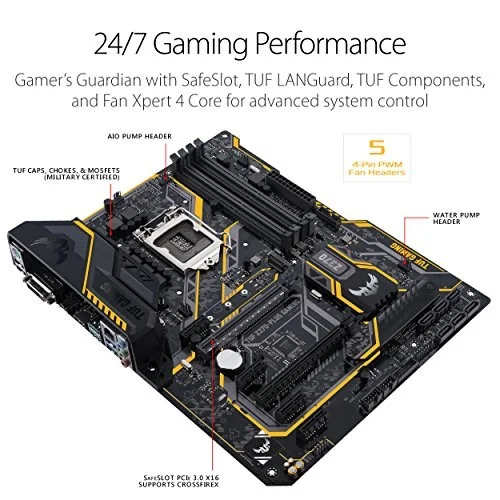

- Gamer’s Guardian with Safe Slot and FanXpert 4 Core provides hardware-level safeguards for maximum performance with dynamic system cooling
- Unmatched Personalization with ASUS exclusive AURA Sync RGB lighting, additional RGB header and 3D-print friendly mounts
- Ultimate Protection 5-Year Warranty for guaranteed reliability built on Military Grade engineering
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | TUF Z370 Plus Gaming Z370 Plus Gaming |
| Launch Date | October 2017 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z370 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 4 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 4 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

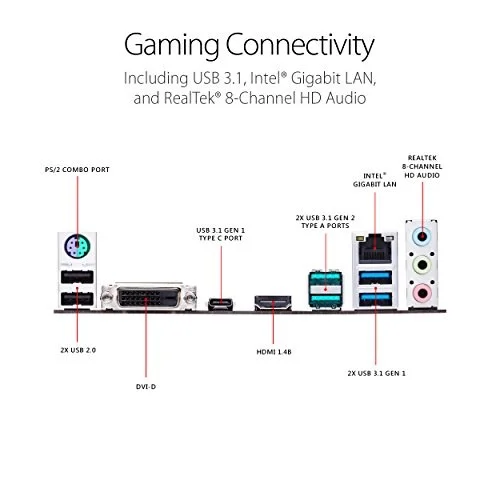

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TUF Z370 Plus Gaming |
| SKU Code | TUF Z370 Plus Gaming |
| GTIN / EAN | 889349848968 |
