Asus TUF Z390-Plus Gaming (Wi-Fi) LGA1151 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

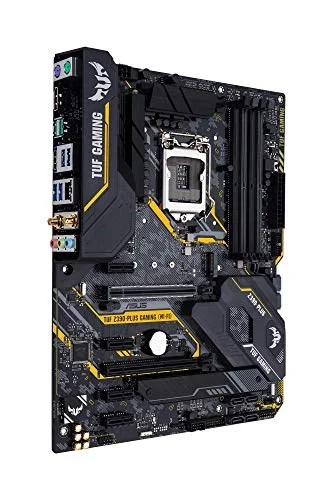

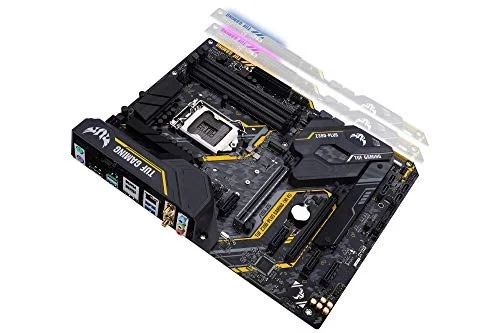

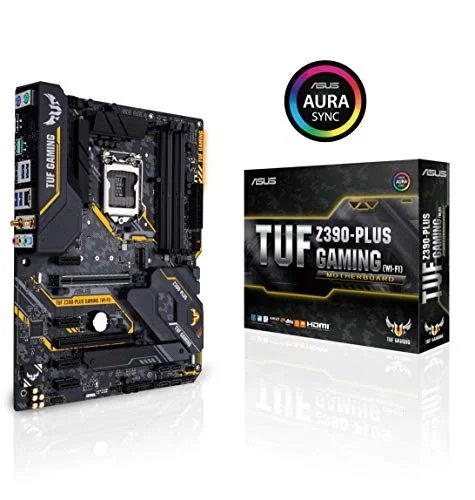

The Asus TUF Z390-Plus Gaming (Wi-Fi) is a ATX motherboard for LGA1151. It supports DDR4 memory up to 4266 MT/s (OC).
- Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with dual M.2, Gigabit LAN, USB 3.1 Gen2
- Military-Grade TUF Components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize system durability
- Gamer’s Guardian with Safe Slot and FanXpert 4 provides hardware-level safeguards for maximum performance with dynamic system cooling
- 8-channel HD Gaming Audio with TUF Gaming Headphone featuring Realtek S1200A high definition audio codec driven by Japanese capacitors for warm, immersive sound
- ASUS Optimum II improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | TUF Z390-Plus Gaming (Wi-Fi) |
| Launch Date | October 2018 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z390 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 4 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 4 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TUF Z390-Plus Gaming (Wi-Fi) |
| SKU Code | TUF Z390-Plus Gaming (Wi-Fi) |
| GTIN / EAN | 192876126202 |
