ASUS WS X299 PRO LGA2066 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

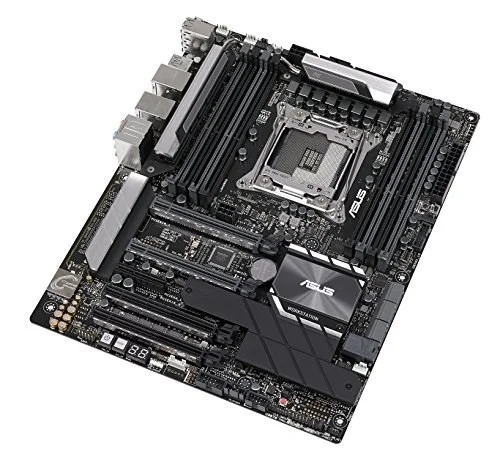

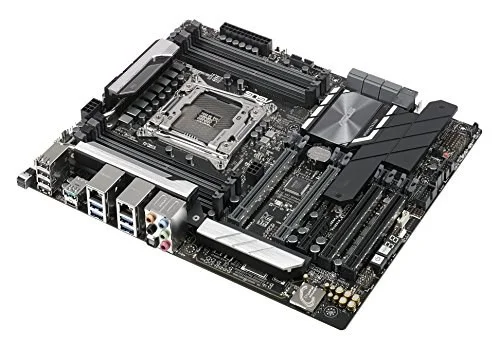

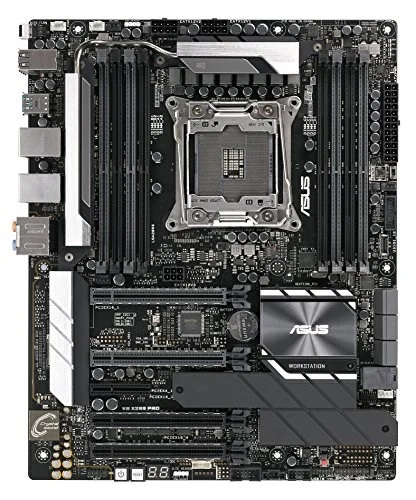

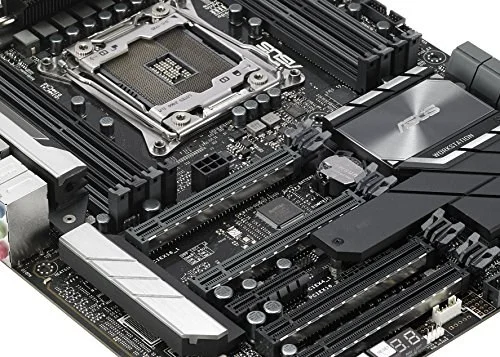

The ASUS WS X299 PRO is a ATX motherboard for LGA2066. It supports DDR4 memory up to 4133 MT/s (OC).
- 128GB DDR4-SDRAM
- ATX Form Factor
- Ports: 2 X LAN (RJ45), 2 X USB3.1 Gen 2, 4 X USB3.1 Gen 1, 4 X USB2.0, 1 X Optical S/PDIF Out, 1 X USB BIOS Flashback Button, 1 X 8-Channel Audio I/O
- Chipset: Intel X299
- Backed By 3 Years Manufacturers Warranty
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | WS X299 PRO 90SW0090-M0EAY0 |
| Launch Date | |
| CPU Socket | LGA2066 |
| Chipset Model | Intel X299 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-3600 / DDR4-4133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | WS X299 PRO |
| SKU Code | WS X299 PRO |
| GTIN / EAN | 889349810279 |
