ASUS WS X299 PRO/SE LGA2066 SSI CEB DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

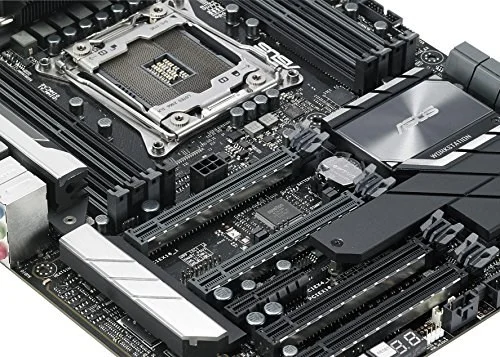

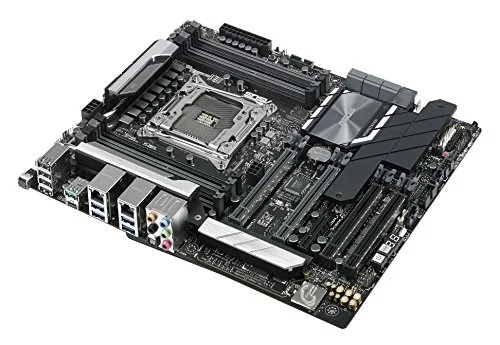

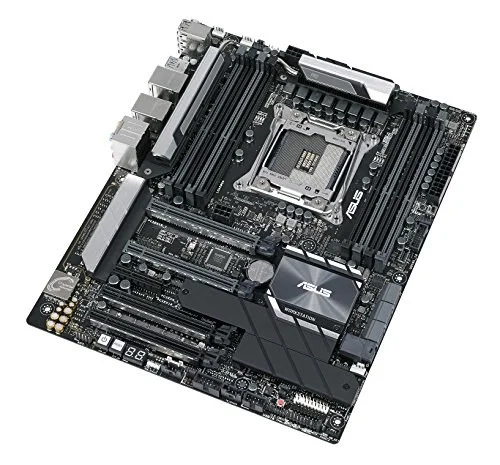

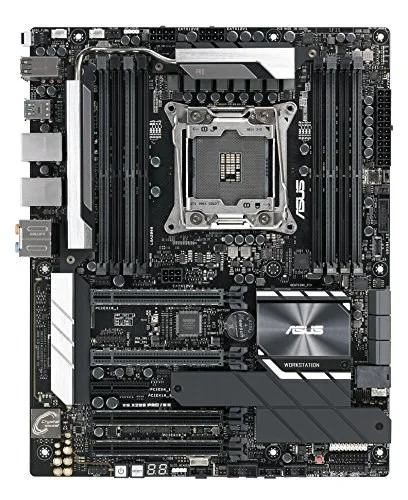

The ASUS WS X299 PRO/SE is a SSI CEB motherboard for LGA2066. It supports DDR4 memory up to 4133 MT/s (OC).
- Designed For 7Th Generation LGA2066 Socket Intel Core X-Series Processors With Dual M. 2
- Oc Design Featuring ASUS Proclock And T-Topology Technology Extends CPU And Memory
- Patent-Pending Safe Slot Features An Injection Molding Process For Supporting 3-Way NVIDIASLI Or AMD Crossfire
- Industry-Leading 8-Channel HD Audio Enhanced By ASUS Exclusive Realtek S1220A Featuring Crystal Sound 3, DTS Headphone: X And Driven By Japanese Capacitors For Warm, Immersive Sound
- Aura Sync RGB Lighting Via Addressable RGB Header Features A Nearly Endless Spectrum Of Colors With The Ability To Synchronize Effects Across An Ever-Expanding Ecosystem Of AURA Sync Enabled Products
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | WS X299 PRO/SE 90SW00A0-M0AAY0 |
| Launch Date | November 2018 |
| CPU Socket | LGA2066 |
| Chipset Model | Intel X299 |
| Board Size / Form Factor | SSI CEB |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2400 / DDR4-2666 / DDR4-3600 / DDR4-4000 / DDR4-4133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | WS X299 PRO/SE |
| SKU Code | WS X299 PRO/SE |
| GTIN / EAN | 889349813638 |
