Description
The ASUS WS Z390 PRO is a ATX motherboard for LGA1151. It supports DDR4 memory up to 4266 MT/s (OC).

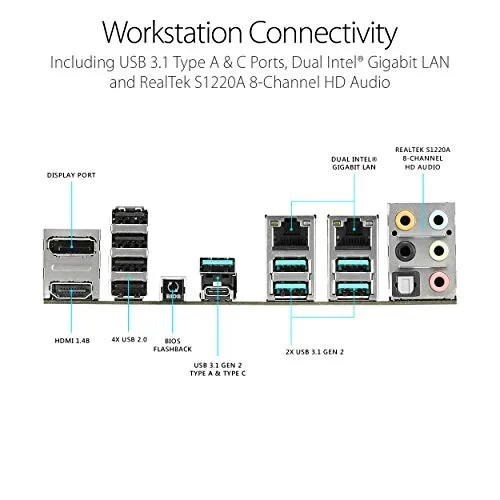

- Designed for 9th generation socket 1151 Intel Core processors with dual M.2 and U.2 ports, front panel USB 3.1 Gen2, Dual Intel Gigabit LAN

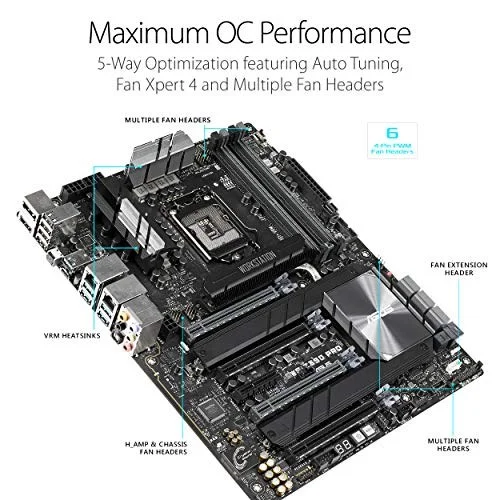

- 5-Way Optimization featuring Auto-Tuning and FanXpert 4 delivers automatic overclocking profiles for maximum OC performance
- Patent-pending Safe Slot features an injection molding process that integrates metal framing
- Industry-leading Channel HD Audio enhanced by ASUS exclusive Realtek S1220A featuring crystal sound 3, DTS Headphone: X and driven by Japanese capacitors for warm, immersive sound

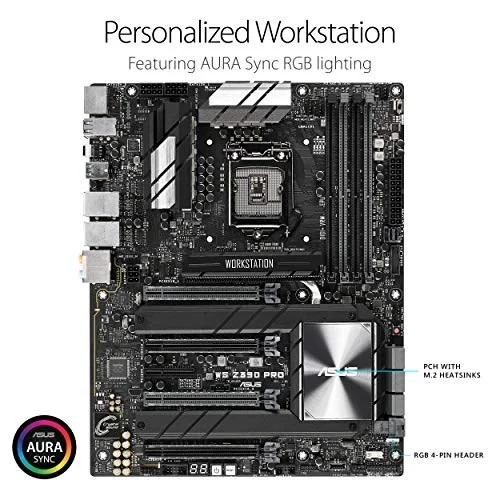

- Aura Sync RGB lighting via 4-pin RGB header features the ability to synchronize colors and effects across an ever-expanding ecosystem of AURA Sync enabled products
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | WS Z390 PRO 90SW00L0-M0AAY0 |
| Launch Date | January 2019 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z390 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | WS Z390 PRO |
| SKU Code | WS Z390 PRO |
| GTIN / EAN | 192876024690 |
