Asus X99-DELUXE II LGA2011-3 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

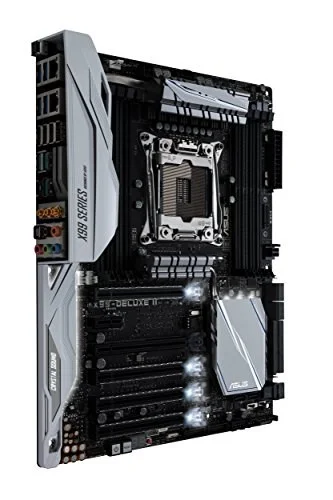

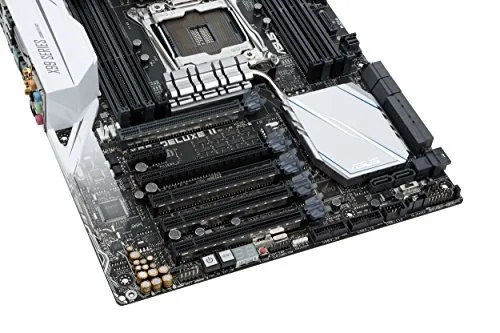

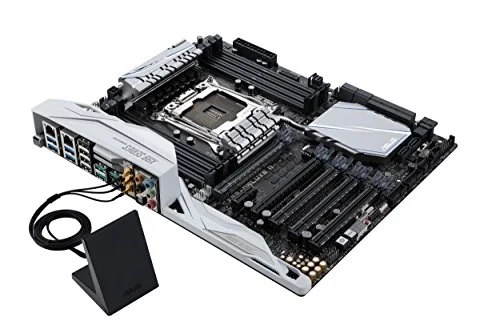

The Asus X99-DELUXE II is a ATX motherboard for LGA2011-3. It supports DDR4 memory up to 3333 MT/s (OC).
- Next-gen connectivity - Includes extensive upgrades including onboard U.2 / M.2 slots that tap into 32Gbps of PCIe bandwidth, 3x3 802.11ac Wi-Fi and USB 3.1 Type C/Thunderbolt 3
- ASUS Aura - Features controllable RGB onboard lighting and 4-pin strip header that can be synced with an ever-growing portfolio of Aura-capable ASUS hardware
- Patent-pending SafeSlot - Reinvented, strengthened PCIe slot utilizes a new insert-molding process to bind the slot to fortifying metal for superior retention and shearing resistance
- 5-Way Optimization: Fan Xpert 4 - Elevates customized cooling to new heights, with auto PWM/DC fan detection on all headers, utilize high-amperage fans and water-cooling pumps in software and UEFI
- Crystal Sound 3 - Gaming-grade audio with unmatched clarity featuring a new power pre-regulator for clean power delivery, which joins ASUS-pioneered noise isolation design and premium audio components
- NOTE: Refer the User Manual before use.
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | X99-DELUXE II |
| Launch Date | May 2016 |
| CPU Socket | LGA2011-3 |
| Chipset Model | Intel X99 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3300 / DDR4-3333 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 5 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 5 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 1 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X99-DELUXE II |
| SKU Code | X99-DELUXE II |
| GTIN / EAN | 889349397794 |
