ASUS X99-DELUXE/U3.1 LGA2011-3 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

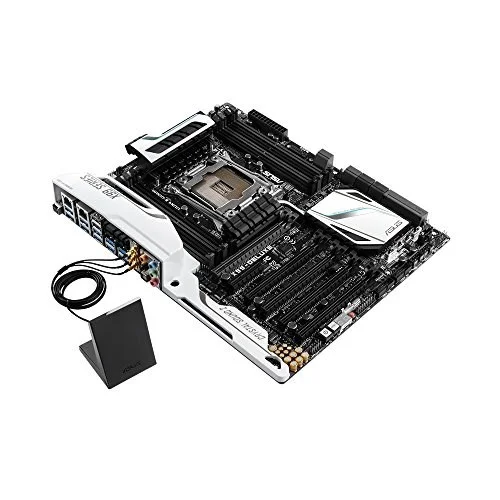

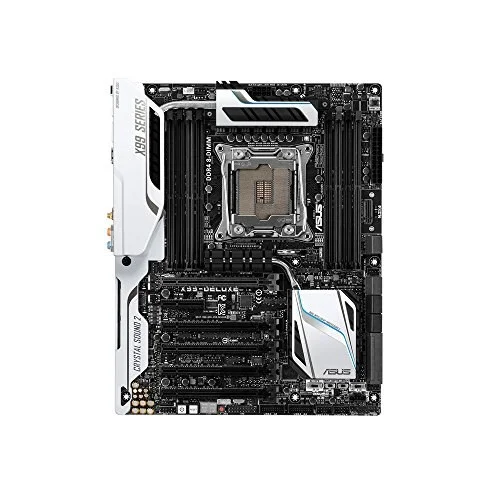

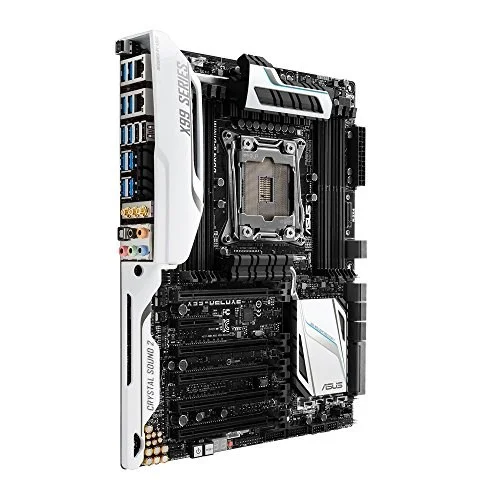

The ASUS X99-DELUXE/U3.1 is a ATX motherboard for LGA2011-3. It supports DDR4 memory up to 3000 MT/s (OC).
- USB 3.1 Add-On Card
- Patent Pending OC Socket - Drive CPU and DDR4 performance beyond all expectations!
- 5-Way Optimization by Dual Intelligent Processors 5 - One click overclock and cooling, done!
- 3x3(3T3R) 802.11ac Wi-Fi - Fastest onboard Wi-Fi up to 1300Mb/s

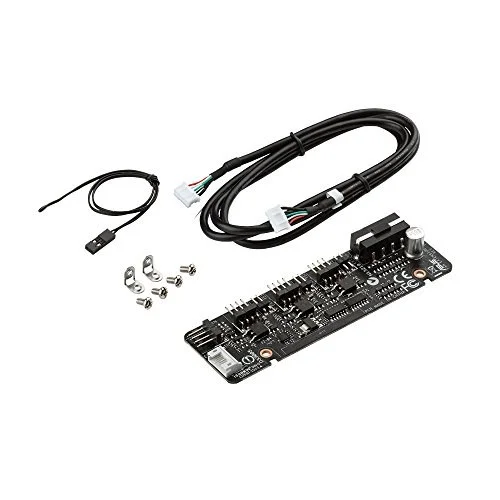

- Fan Extension Card - Powerful cooling with flexible installation & detailed control

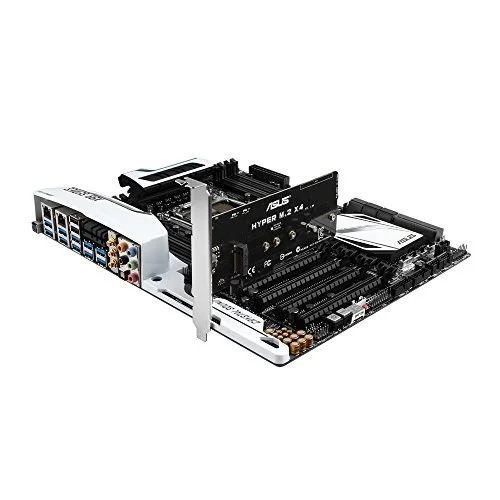

- Dual 32Gb/s ultrafast M.2 x4 (onboard and PCIE add-in card)
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | X99-DELUXE/U3.1 90MB0JF1-M0EAY0 X99 DELUXE/USB3.1 |
| Launch Date | |
| CPU Socket | LGA2011-3 |
| Chipset Model | Intel X99 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 5 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 5 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2230 / 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 2 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X99-DELUXE/U3.1 |
| SKU Code | X99-DELUXE/U3.1 |
| GTIN / EAN | 809385687017 |
