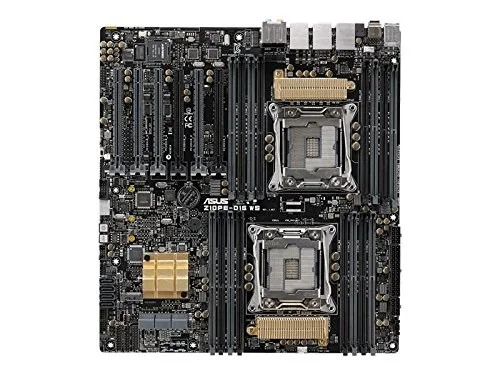

Asus Z10PE-D16 WS 2 x LGA2011-3 SSI EEB DDR4 1024 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus Z10PE-D16 WS is a SSI EEB motherboard for 2 x LGA2011-3. It supports DDR4 memory up to 2400 MT/s (OC).
- Dual Intel Socket 2011-3/ Intel C612 PCH chipset
- Streamlined-airflow design with 16 DIMM slots
- Supreme Power Solution - Premium components deliver industry-leading power efficiency
- Unique BIOS for Dual CPU O.C. -Boost CPU’s overclocking performance up to 10%.Complete remote server management with IPMI 2.0-compliant ASMB8-iKVM module and ASWM Enterprise
- Compatible processors:Xeon E5-2600 v3 series, Xeon E5-1600 v3 series, Xeon E5-2600 v4 series, Xeon E5-1600 v4 series
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | Z10PE-D16 WS 90SB04L0-M0EAY0 |
| Launch Date | |
| CPU Socket | 2 x LGA2011-3 |
| Chipset Model | C612 |
| Board Size / Form Factor | SSI EEB |
| Supported Memory Type | DDR4 |
| DIMM Slots | 16 |
| Maximum RAM Capacity | 1024 GB |
| Valid DDR4 Speeds | DDR4-1600 / DDR4-1866 / DDR4-2133 / DDR4-2400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 6 × PCIe x16 |
| PCIe x16 (Qty) | 6 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 10 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

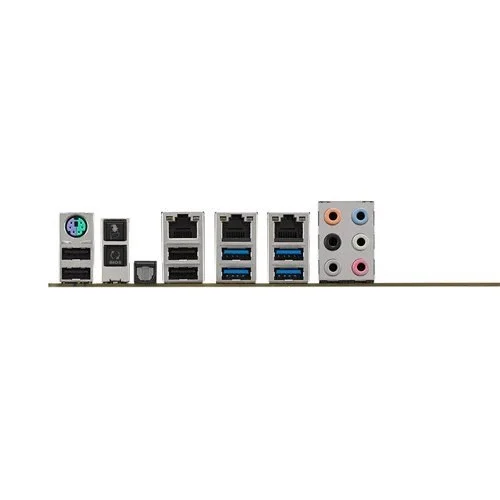

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z10PE-D16 WS |
| SKU Code | Z10PE-D16 WS |
| GTIN / EAN | 886227921690 |
