ASUS Z10PE-D8 2 x LGA2011-3 SSI EEB DDR4 512 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

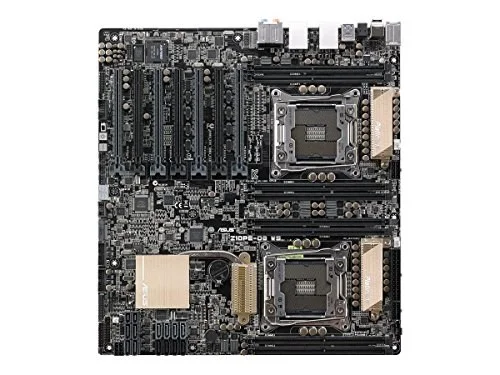

The ASUS Z10PE-D8 is a SSI EEB motherboard for 2 x LGA2011-3. It supports DDR4 memory up to 2133 MT/s (OC).

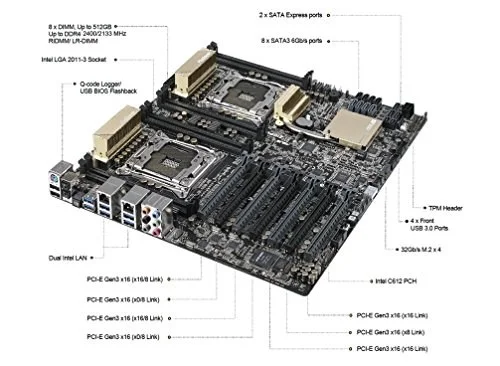

- Quad Strength Graphic Power - 4-Way PCI-E Gen3 x16 link supporting NVidia GeForce SLI and AMD CrossFireX on demand
- Supreme Power Solution - Premium components deliver industry-leading power efficiency
- Unique BIOS for Dual CPU O.C. -Boost CPU’s overclocking performance up to 10%
- Superb storage flexibility- onboard M.2 x4 and support for ASUS PIKE II cards. Memory and PCI Express controllers integrated provides great graphics performance with superior energy efficiency
- Easy maintenance-ASUS Q-Code Logger, an easy-maintenance button and Dr. Power LED displays unusual power statuses.Z10PE-D8 WS is built to stay cool under pressure and boosts performance, power efficiency and product longevity into extreme levels
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | Z10PE-D8 WS 90SB0460-M0EAY0 |
| Launch Date | |
| CPU Socket | 2 x LGA2011-3 |
| Chipset Model | C612 |
| Board Size / Form Factor | SSI EEB |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 512 GB |
| Valid DDR4 Speeds | DDR4-1600 / DDR4-1866 / DDR4-2133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 7 × PCIe x16 |
| PCIe x16 (Qty) | 7 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 2 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

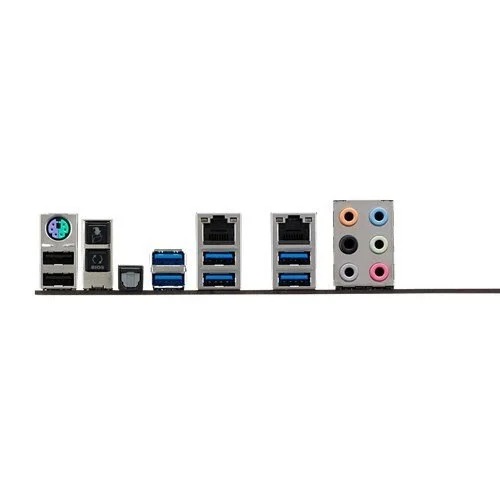

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z10PE-D8 WS |
| SKU Code | Z10PE-D8 WS |
| GTIN / EAN | 663479897368 |
