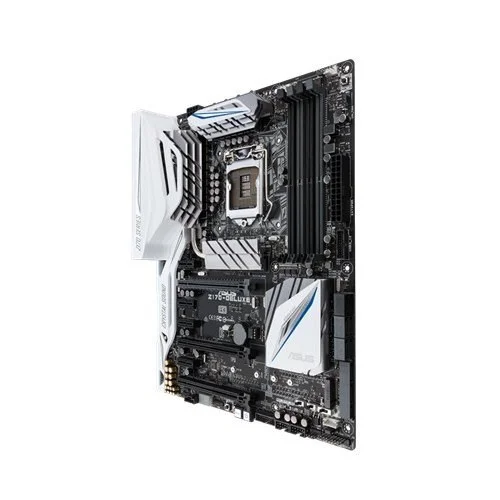

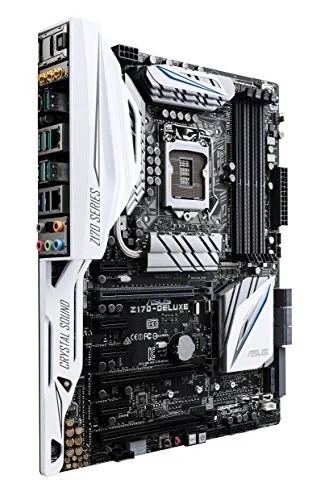

ASUS Z170-DELUXE LGA1151 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS Z170-DELUXE is a ATX motherboard for LGA1151. It supports DDR4 memory up to 3400 MT/s (OC).
- Unleash performance with one click and exclusive OC design, plus unparalleled connectivity with 3x3 802.11ac Wi-Fi
- 5-Way Optimization: One click optimizes your entire system with a dedicated water-pump header on board
- ASUS Pro Clock Technology: Extends base clocks and improves stability for extreme overclocking

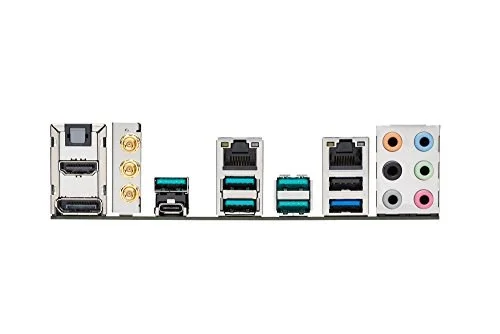

- 6 USB 3.1 onboard: 5 Type-A ports and 1 reversible Type-C port
- Dual 32Gbit/s ultra-fast M.2 x4: Onboard and PCIe add-in card
- Hyper Kit: Bundled for instant U.2 support
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | Z170-DELUXE |
| Launch Date | August 2015 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z170 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 4 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 4 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 1 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z170-DELUXE |
| SKU Code | Z170-DELUXE |
| GTIN / EAN | 807034901590 |
