Asus Z170-P D3 LGA1151 ATX DDR3 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

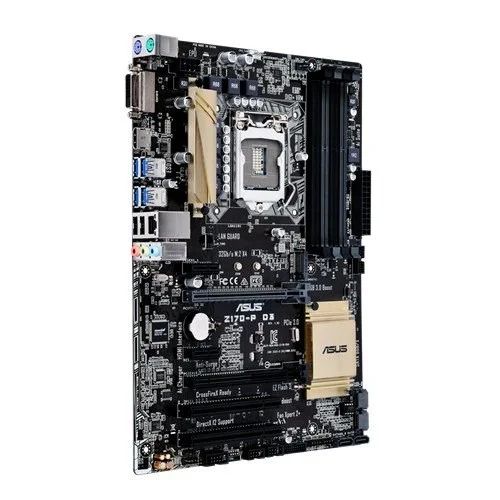

The Asus Z170-P D3 is a ATX motherboard for LGA1151. It supports DDR3 memory up to 2933 MT/s (OC).
- Advanced hardware safeguards
- Pumped-up throughput 2.5x higher surge tolerance
- World-class circuit-protecting power design
- Short-circuit damage prevention
- Precision Control For Stable Power
- 3X Corrosion-Resistance For Greater Durability
- Media-acclaimed UEFI BIOS
- Instant Front-Panel Usb 3.0 Experience
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | Z170-P D3 90MB0I00-M0EAY0 |
| Launch Date | August 2015 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z170 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-1333 / DDR4-1600 / DDR4-1866 / DDR4-2400 / DDR4-2600 / DDR4-2666 / DDR4-2800 / DDR4-2933 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z170-P D3 |
| SKU Code | Z170-P D3 |
| GTIN / EAN | 889349120798 |
