Description

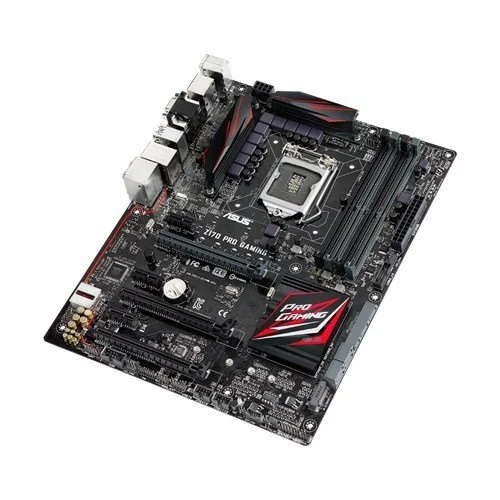

The ASUS Z170-PRO GAMING is a ATX motherboard for LGA1151. It supports DDR4 memory up to 3400 MT/s (OC).
- High-value, feature-packed, performance-optimized Z170 ATX board
- LGA1151 socket for 6th Gen Intel Core Desktop Processors
- Dual DDR4 3400 (OC) support
- PRO Clock technology, 5-Way Optimization and 2nd-generation T-Topology: Easy and stable overclocking
- SupremeFX: Flawless audio that makes you part of the game
- Intel Gigabit Ethernet, LANGuard & GameFirst III: Top-speed protected networking
- RAMCache: Speed up your game loads
- USB 3.1 Type A/C & M.2: Ultra-speedy transfers for faster gaming
- Gamer’s Guardian: Highly-durable components and smart DIY features
- Sonic Radar ll: Scan and detect your enemies to dominate
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | Z170 PRO GAMING |
| Launch Date | August 2015 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z170 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 1 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

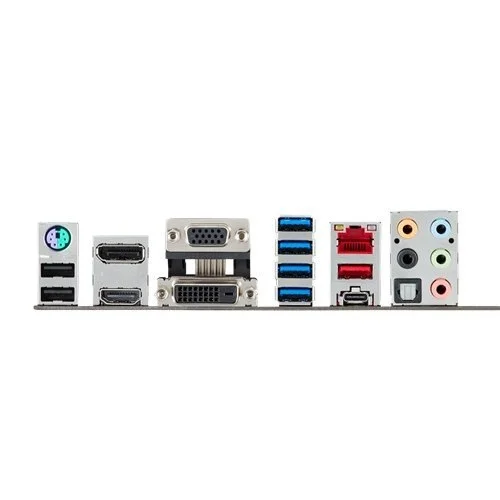

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z170 PRO GAMING |
| SKU Code | Z170 PRO GAMING |
| GTIN / EAN | 889349114872 |
