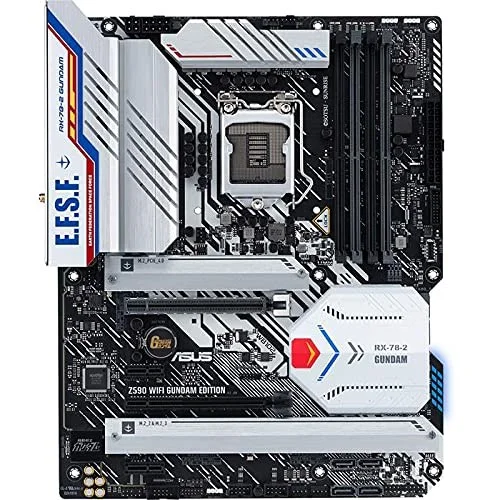

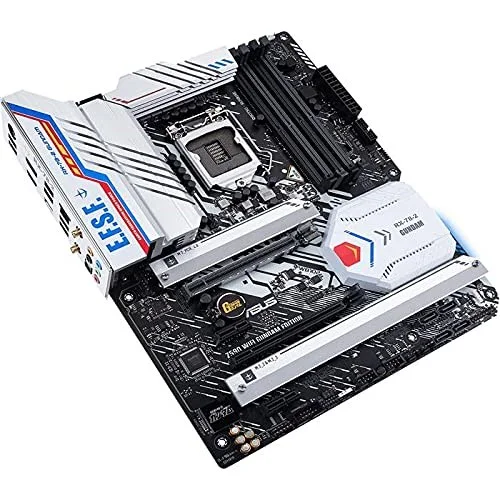

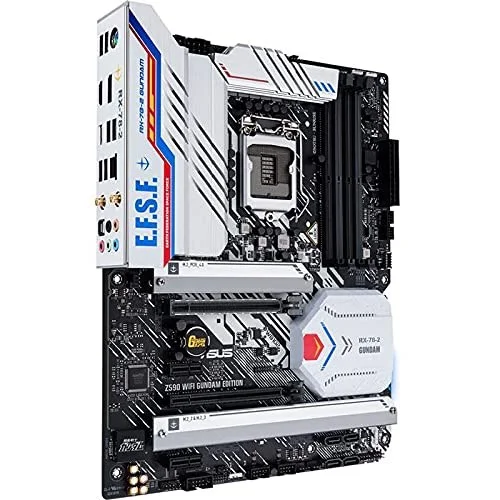

ASUS Z590 WIFI GUNDAM EDITION LGA1200 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
$29.99 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS Z590 WIFI GUNDAM EDITION is a ATX motherboard for LGA1200. It supports DDR4 memory up to 5133 MT/s (OC).
- Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Core processors
- Enhanced power solution: 14+2 DrMOS power stages, six-layer PCB, ProCool sockets, military-grade components and Digi+ VRM for maximum durability
- Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- Next-gen connectivity: PCIe 4.0, USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 1 Type-C and Thunderbolt 4 support
- Made for online gaming: Intel WiFi 6, Intel 2.5 Gb Ethernet, LANGuard and TurboLAN technology
- Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | Z590 WIFI GUNDAM EDITION 90MB1830-M0AAY0 |
| Launch Date | September 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z590 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-5000 / DDR4-5133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key (Intel 11th Gen only), 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z590 WIFI GUNDAM EDITION |
| SKU Code | Z590 WIFI GUNDAM EDITION |
| GTIN / EAN | 195553185660 |
